MAUI® 28 G3

MAUI® 28 G3

Compact cardioid column PA system, black

Item no.: LDMAUI28G3

Guarantee: 24 months

EAN: 4049521713019

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:MAUI

Versions:

Item highlights:

  • 2060 W Peak-power and 127 dB max. SPL
  • Powerful and deep bass reproduction with 12" subwoofer
  • Balanced mids thanks to 12 x 3.5" full-range speakers
  • Precise and silky highs with 2 x 1" high-frequency drivers
  • Cardioid column for controlled low-mid and midrange sound dispersion
  • BEM optimised HF waveguide and midrange phase plugs for homogeneous dispersion
  • Optimised bass-reflex design improves bass response and reduces air flow noise
  • Can be combined with an additional MAUI® 28 G3 subwoofer for increased low end or for cardioid subwoofer setups
  • New Dynx® DSP (Gen.2) for distortion-free sound even at maximum volume
  • HD Bluetooth® 5.0 streaming
  • Automatic setup detection for quick and easy operation
  • Fast and simple assembly without stands or cables
  • Rugged birch plywood subwoofer housing with durable polyurea-coating
  • Lightweight, powder-coated aluminium column housing

Specifications

Type
Active
Peak output power
2060 W
RMS output power
1030 W
Amp class
Class D
Max. SPL peak
127 dB
Beam angle
Hor.: 120° / Vert.:30°
Number of inputs
2
Input connector types
XLR combo socket
Number of outputs
3
Output connector types
XLR 3-pole male
Protection features
Multiband Limiter, Short circuit, Overheating, Direct current
Colour
Black
Bluetooth® version
Bluetooth® 5.0
Features
Audio Streaming (A2DP), Control
Supported audio codecs
SBC, AAC
Number of speaker outputs
1
Speaker output connection type
XLR 3-pole male
Number of line outputs
2
Line outputs connector type
XLR 3-pole male
AD/DA converter bit depth
24 Bit
AD/DA converter sampling rate
48 kHz
Size
12 "
Magnet
Ferrite
Voice coil
3 "
Size
3.5 "
Quantity
12
Voice coil
0.75 "
Magnet
Ferrite
Driver size
1 "
Quantity
2
Magnet
Neodymium
Voice coil
1 "
Operation voltage
100 V AC - 120 V AC / 50 - 60 Hz, 220 V AC - 240 V AC / 50 - 60 Hz
Power supply type
Switched-mode power supply (SMPS)
Rated power
400 W
Mains connector
Mains socket indoor power in male & powerCON®
Design
Bass reflex
Number of handles
4
Cabinet material
Multiplex
Material thickness
15 mm
Front grille material
Aluminium
Cooling system
Convection cooling
Design
Cardioid
Chassis material
Aluminium
Front grille material
Aluminium
Width
103 mm
Height
1,540 mm
Depth
135 mm
Weight
12.6 kg
Design
Bass reflex
Material thickness
15 mm
Surface coating
Polyurea
Front grille material
Aluminium
Width
370 mm
Depth
472 mm
Height
527 mm
Weight
22.8 kg
Ambient temperature
0 - 40 °C
Maximum air humidity (non-condensing)
80 %
Width
370 mm
Height
2,052 mm
Depth
472 mm
Weight
35.4 kg
Included accessories
Mains cable

Description

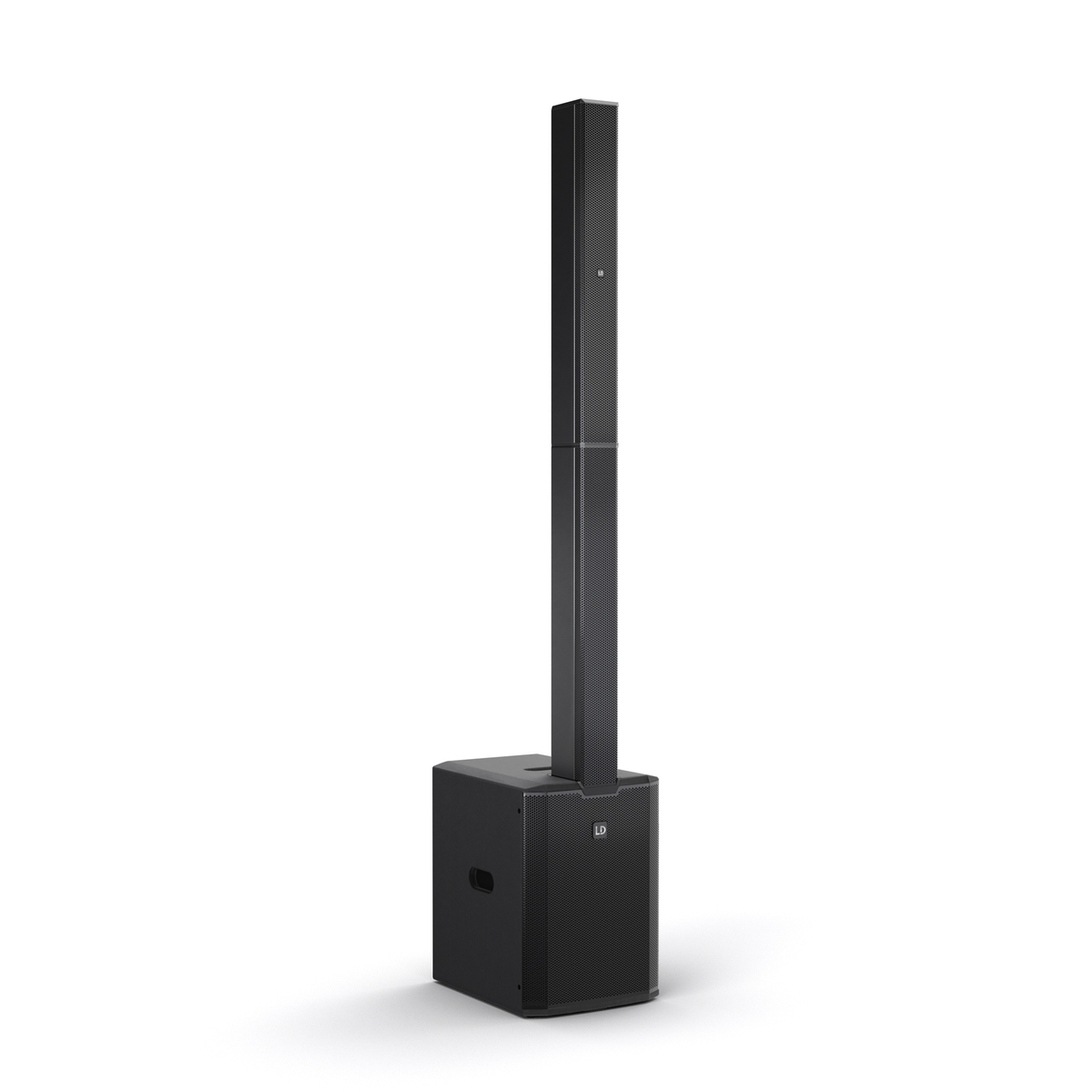

MAUI® 28 G3

Compact, powerful and easy to use - a column PA remains the perfect companion for DJs and smaller bands. The LD Systems MAUI series represents this all-in-one concept in every detail and offers an unrivalled PA package in terms of sound, design, technology and handling. Set it up, plug it in, and you're all set!

The MAUI 28 G3 delivers a huge, powerful and precise sound featuring 1,030 W RMS power (2,060 W peak), suitable for all applications: as a main PA for concerts, a sound system for mobile DJs or a public address system at weddings, corporate events and many more.

With its sleek and elegant design, the MAUI 28 G3 looks very appealing. The two aluminium column elements sit at the front edge of the subwoofer, further enhancing the seamless visual impression. The columns are equipped with 12 x 3.5'' midrange drivers and 2 x 1'' tweeters, providing an even sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. In addition, the BEM-optimised waveguide ahead of the tweeters carries the high frequencies even to the very rear audience areas.

The LD Systems engineers also took great care of the crossover filter between midrange and tweeter speakers. The aim was to reduce harmonic distortion and interference to make the sound even more transparent, vibrant and powerful. The result speaks for itself: a highly precise reproduction of vocals and instruments across the entire 120° x 30° dispersion field. The columns of the MAUI 28 G3 are designed as cardioid speakers. This allows for controlled low-mids at the front and up to 18 dB of attenuation at the rear, resulting in a clean stage sound.

Equipped with a single 12'' woofer and four bass reflex ports, the MAUI 28 G3 subwoofer delivers a clear, tight and punchy low end down to 37 Hz. By using a second subwoofer, the bass response can also be increased of up to 6 dB and it can also be driven in cardioid configuration at the push of a button (cardioid preset). In addition, the ultra-durable polyurea coating of the subwoofer easily withstands even the toughest demands on the road.

The MAUI 28 G3 is a real sound machine, yet also convinces with its sophisticated features in the day-to-day life of DJs, musicians and technicians. Thanks to Bluetooth 5.0, the column PA becomes even more versatile. Transport is as easy as usual, while the enhanced, hidden multi-pin connections between the elements provide increased stability during assembly. There's nothing that can knock the MAUI off its feet so easily...
