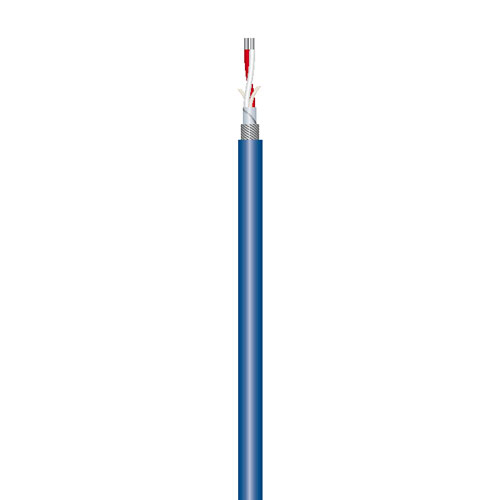

KMK 234 AES B
Archive

KMK 234 AES B

AES/EBU and DMX Cable "Sommer Cable" 110-Ohm digital, Blue

Item no.: KMK234AESB

Guarantee: 24 months

EAN: 4049371002363

Sliding scale: 100

Unit: Running metre

Packaging unit: 100

Item highlights:

The Omega Pro AES is an outstanding cable for transmitting data signals in the 110 Ohm AES/EBU and DMX data format. 100 % shielding + fleece with vaporised aluminium ensure faultless data transfer even over long runs.

Specifications

Product type
Bulk Cable
Type
DMX & AES/EBU Cable
Color
blue
Overall diameter
6.4 mm
Center conductor cross section
0.34 mm²
Center conductor material
copper
Center conductor construction
19 x 0.15 mm
Number of internal conductors
2
Shield material
Copper / aluminium fleece
Shield
Braided / wound shielding
Line surge impedance
110 Ohm(s)
Line resistance
<53 Ohm(s)
Capacitance
65 pF/m
Jacket material
PVC
Weight
0,05 kg
