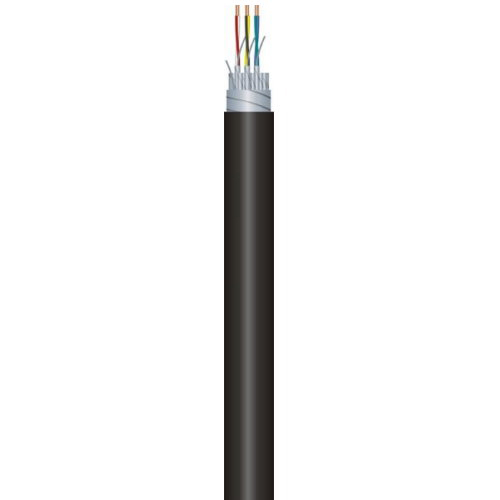

Item no.: K12PR
Guarantee: 24 months
EAN: 4049371000659
Sliding scale: 1
Unit: Running metre
Packaging unit: 1
Item highlights:
Balanced, pairs in foil jacket (PIMF) + overall foil shielding Mobile FMC in 12* pairs version
- Order-Code: K12 PR = 12+2 Pair
All Multicore Audio pairs are foil wrapped to minimise the cables diameter and price. The compound foil on the pairs will not come apart when heat-shrink is used, but can be easily worked with. The entire cable has a solid but easily removable AL/PT foil and pre-twisted drain wire. All conductors are colour coded.
Product advantages- Compact diameter
- Excellent to work with due to the use of a special AL/PT-foil
- Flexible
- Competitive pricing
- All types marked with a * have two additional channels
A PIMF-cable should always be connected with the central ground to avoid ground contacts.
Specifications
Product type
Bulk Cable
Type
Multicore cable
Color
Black
Overall diameter
12 mm
Center conductor cross section
0.22 mm²
Center conductor material
copper
Center conductor construction
24 x 0.1 mm
Number of internal conductors
28
Shield material
Foil
Shield
twisted
Line resistance
< 80 Ohm(s)
Capacitance
65 pF/m
Jacket material
PVC
Weight
0,2 kg
Additional information
Inner conductors shielded in pairs
