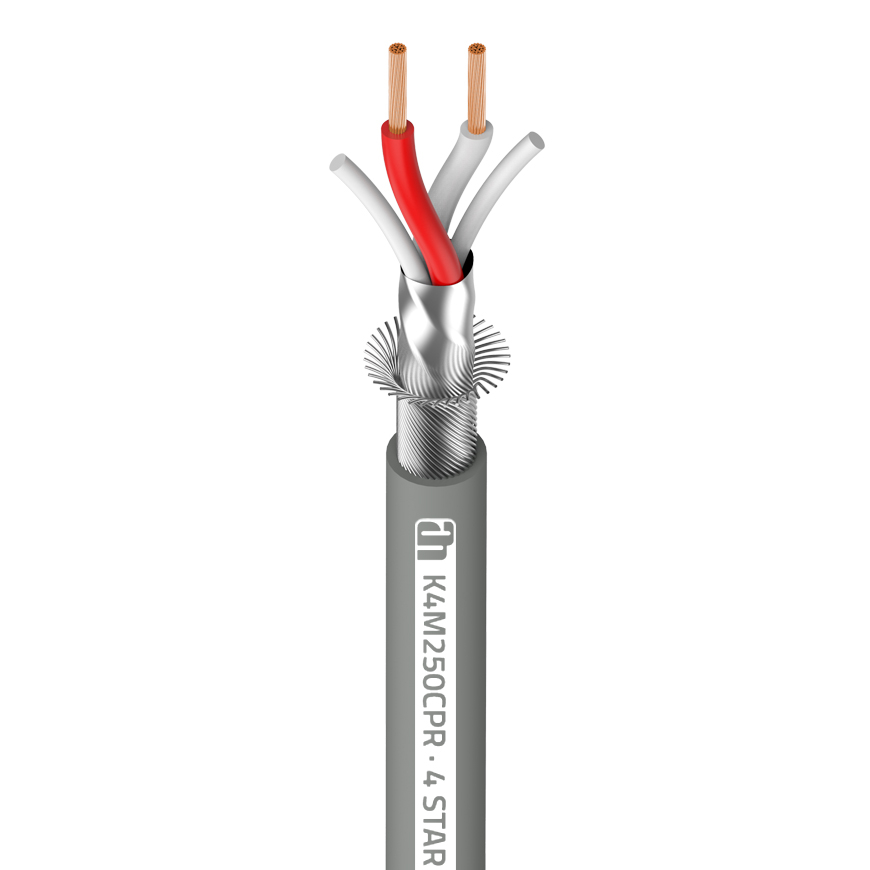

4 STAR MICROPHONE 250 INSTALL CABLE

4 STAR MICROPHONE 250 INSTALL CABLE

Microphone Cable | 0.50 mm² AWG20 | Indoor install cable (class: Eca)

Item no.: K4M250CPR

Guarantee: 24 months

EAN: 4049521653216

Sliding scale: 100

Unit: Running metre

Packaging unit: 400

Series:4 Star

Versions:

Item highlights:

  • Indoor installation cable from our 4 STAR SERIES
  • Packaging unit: 100 m in one piece
  • Tested and approved for BauPVO class: Eca
  • With special jacket for heavy flammability and halogen-free
  • Light stiffness, perfect for passing through e.g. narrow cable ducts in the wall

Specifications

Cable jacket
CPR-compliant
Cable diameter
5.2 mm
Conductor material
OFC (Oxygen-free copper)
Conductor cross-section
2 x 0,50 mm²
AWG
20
Capacity/m
64 pF
Conductor impedance/km
37 Ohm
Shielding
Spiral copper shielding
Fire protection class per DIN 4102-1
Eca
Ambient temperature
-40 - 90 °C
Weight
50 g

Description

4 STAR MICROPHONE 250 INSTALL CABLE

For particularly heavy flammability and halogen-free, perfectly suitable for permanent installation in buildings. Tested and approved by TÜV for Euroclass: Eca. If you are planning an indoor installation, you also need the right accessories in cables, as these can act particularly strongly as fire accelerators. It is advisable to use so-called CPR cables. They consist of a hardly combustible sheath and due to the absence of halogen components, there are also no associated toxins that can be released. We offer CPR cables as DMX, microphone and loudspeaker cables.
