4 STAR DMX 222

4 STAR DMX 222

DMX, AES/EBU Kabel | 0.22 mm² AWG24 | 100 m

Item no.: K4D222

Guarantee: 24 months

EAN: 4049521646140

Sliding scale: 100

Unit: Running metre

Packaging unit: 400

Series:4 Star

Versions:

Item highlights:

  • Professional DMX, AES / EBU Cable from our 4 STAR "Standard" SERIES
  • Packaging unit: 100 m in one piece
  • Tinned copper braided shielding for optimum shielding behavior of 100%
  • Very good capacitance values of 60 pF / m
  • Very narrow diameter of 5.8 mm

Specifications

Cable jacket
PVC (Polyvinyl chloride)
Cable diameter
5.8 mm
Conductor material
OFC (Oxygen-free copper)
Conductor cross-section
2 x 0,22 mm²
AWG
24
Capacity/m
60 pF
Conductor impedance/km
< 85 Ohm
Wave impedance
120 Ω
Shielding
Braided copper shielding
Ambient temperature
-20 - 70 °C
Weight
50 g

Description

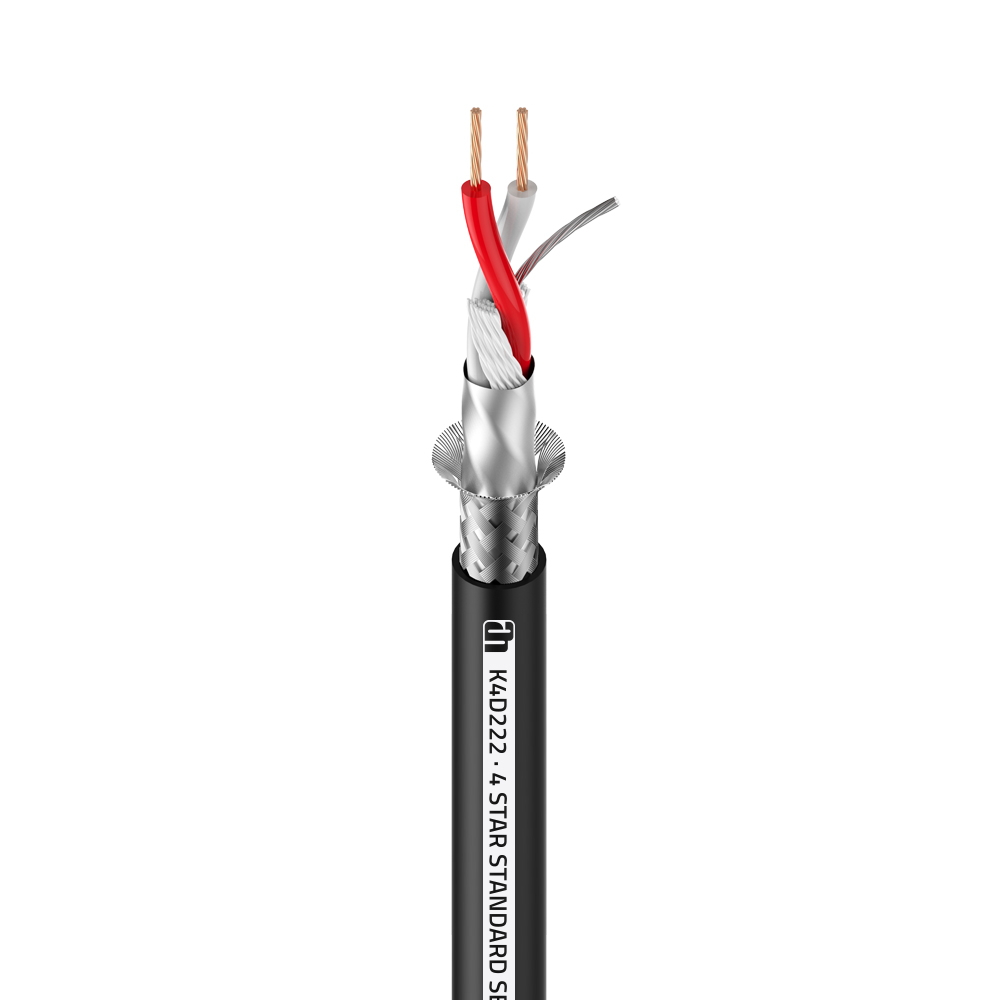

4 STAR DMX 222

THe 4 STAR D 222 is our absolute classic when it comes to transmission of DMX signals. You are in the end of your search, if you need a highly flexible cable with excellent transmission characteristics. Its tin copper braided shielding with AL/PT foil and drain wire, makes this cable being perfectly protected against external influences. Thanks to its extremely thin diameter it is easy to wind and very flexible, but also robust for hard road applications.
