Item no.: K4D225
Guarantee: 24 months
EAN: 4049521658181
Sliding scale: 100
Unit: Running metre
Packaging unit: 400
Item highlights:
- 4 Star "Standard" Series
- Packaging unit: 100 m on drum
- Highly flexible, easy to reel
- Good shielding thanks to dense copper braided shield with stranded wires
- Slightly larger inner conductor cross-section of 2 x 0.25 mm² - Good shielding thanks to dense copper braiding
Specifications
Product type
Bulk Cable
Type
DMX & AES/EBU Cable
Color
Black
Overall diameter
5.5 mm
AWG
23
Center conductor cross section
0.25 mm²
Center conductor material
OFC
Center conductor construction
14 x 0.15 mm
Number of internal conductors
2
Shield material
Copper, tin-plated
Shield
Braided screen
Line surge impedance
120 Ω
Line resistance
85 Ω
Capacitance
60 PF/M
Temperature range
-20 °C - 70 °C
Description

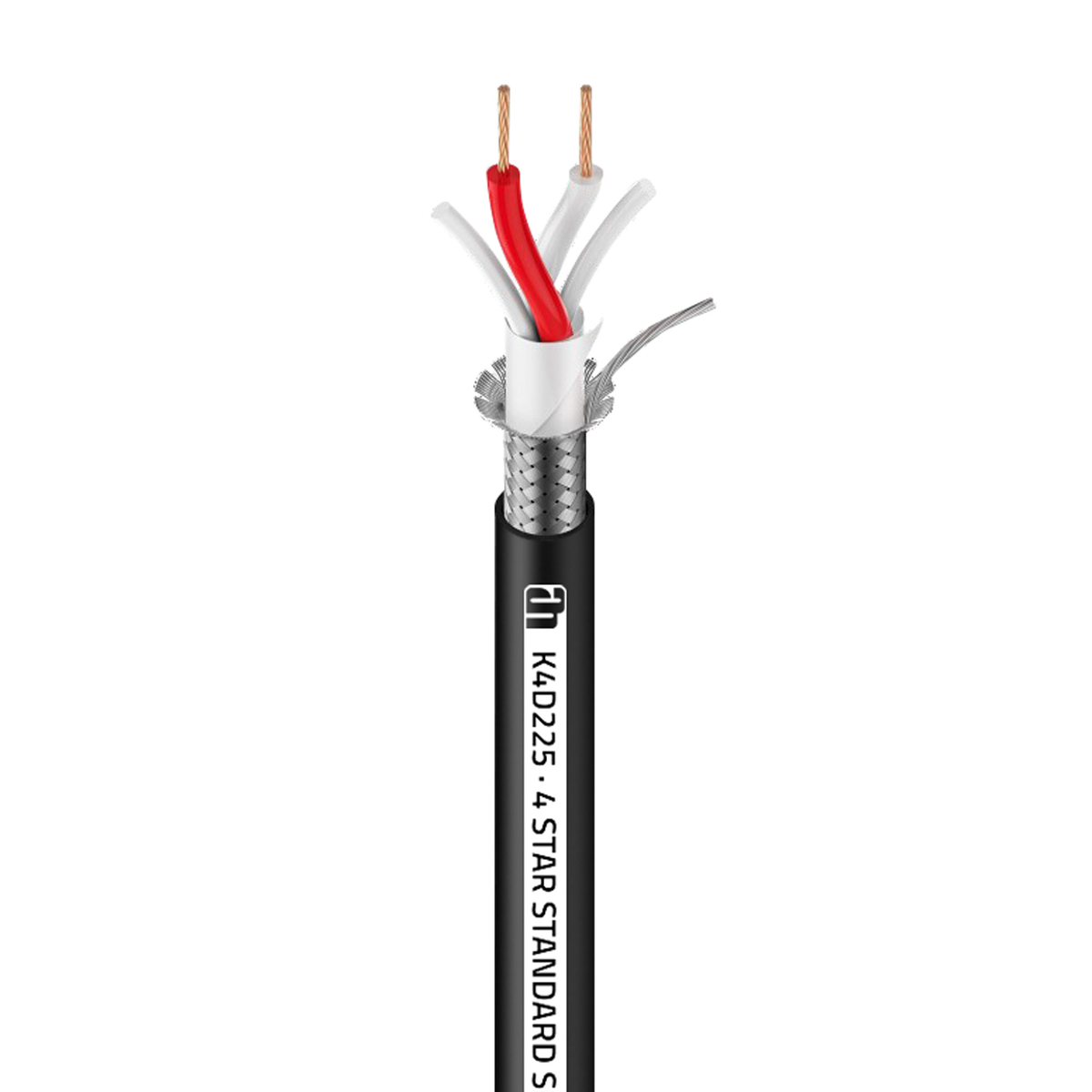

4 STAR D 225
The 4 STAR D 225 is perfectly suited for the transmission of DMX, AES/EBU signals. Our classic with 2 x 0.25 mm² inner conductor is also very suitable for longer distances thanks to its slightly larger cross-section. The highly flexible cable can be easily reeled and, thanks to its diameter of 5.5 mm, is also robust enough for tough road use.
