MULTI PAR 2

Compact 28 x 3 W TRI Colour LED Lighting System incl. Transport Case

Item no.: CLMPAR2

Guarantee: 24 months

EAN: 4049521130663

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:Light Sets

Questions about the item?

Item highlights:

4 x 7 ultra-bright 3 W TRI RGB LEDs
Professional 28-mm TV spigot for mounting
Optional footswitch for easy on stage controlling
Operated via DMX, in master/slave mode or standalone mode
Integrated microphone for sound control
Simple to operate using the four buttons and LC-Display
Sturdy metal housing
Practical transport case included as standard

Features

Environment-friendly
The high energy efficiency, the long service life of the LED lamps and the low level of heat dissipation make this device particularly environment-friendly.

LED technology
LEDs are ideal for use in lighting systems: They are bright and have a low level of heat dissipation, a long operating life and low energy consumption. Moreover, LED systems often weigh less than conventional lighting systems.

Three-colour RGB-LEDs
In RGB LEDs, also known as 3-in-1 LEDs, each LED has its own red, green and blue emitter. This means that each individual LED can display the additive RGB spectrum as well as white.

RGB additive colour system
With additive colour blending, all colours and white are created by blending different amounts of red, green and blue light. The RGB system is used in televisions, computer monitors and digital cameras, for example.

DMX512
Communication standard DMX512 was developed specially for lighting systems in 1986. Up to 32 DMX devices can be daisy-chained and controlled via a control source (e.g. a light mixer).

Standalone mode
In standalone mode, the device functions are controlled via integrated programmes, so no light mixer or “master” controller is required.

Master & slave
Master/slave operation allows identical DMX devices to be controlled by a DMX device of the same model and software standard. All the devices are connected by DMX cables in series. The master device is then set to run in standalone mode and the slave devices are set to run in slave mode.

Music control
In music control mode, the device is controlled via the built-in microphone and can follow the rhythm of the music, for example.

Specifications

Product type

LED Lighting Systems

Type

Indoor

Colour spectrum

RGB

Number of LEDs

4 x 7

LED type

3 W TRI Colour

Dispersion

25

DMX input

XLR 3-pin male

DMX output

XLR 3-pin female

DMX mode

9-channel, 6-channel, 15-channel

DMX Functions

colour jump, master dimmer, colour fade, RGB, sound control, Strobe

Standalone modes

sound control, slave mode, static colour, colour fade, Auto run, colour change

Remote connection

XLR 5-pin female

Controls

Value Up, Value Down, Mode, Enter

Indicators

multifunction LC display

Operating voltage

100 V AC - 250 V AC

Power consumption

100 W

Power supply connector

IEC power connector female, IEC power connector male

Housing material

Metal

Cabinet colour

Black

Illuminance

5450lx @ 1m

TV spigot

28 mm

Width

1.030 mm

Height

290 mm

Depth

100 mm

Description

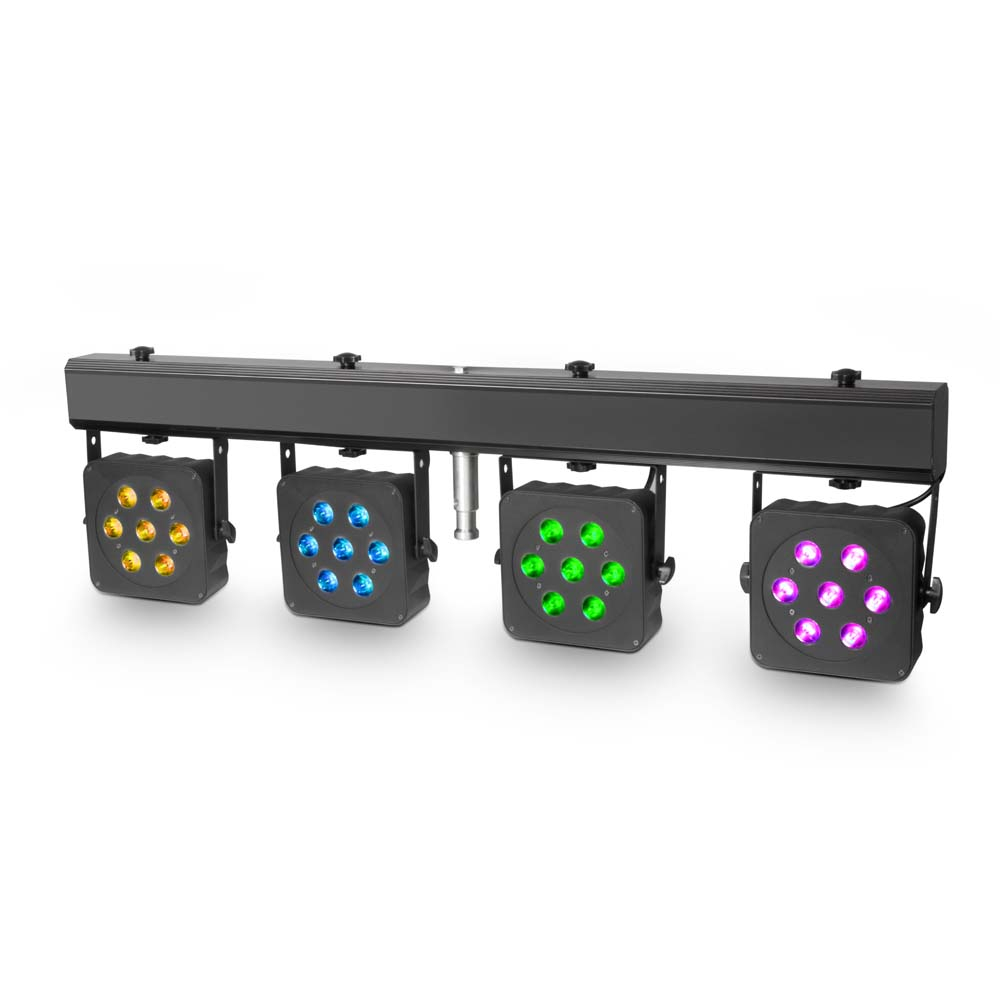

MULTI PAR 2

The four compact flat cans mounted on a bar with integrated control make the CLMPAR 2 the ideal basic kit for stage lighting. A total of 28 ultra-bright 3-Watt TRI colour LEDs create awe-inspiring brightness and a perfect colour mix.

The CLMPAR 2 is equipped with 3-pole XLR inputs and outputs to enable actuation via DMX with 6, 9 or 15 channels. Alternatively, the CLMPAR2 can be actuated with an optional controller, which is connected via the corresponding five-pole cable. The four sturdy foot switches allow access to all of the show's key parameters. Of course, the CLMPAR 2 also works in standalone mode, with a microphone for sound control integrated into the bar. A 4-way foot controller is available as an optional extra.

The CLMPAR 2 is powered via a removable earthing contact cable and is equipped with a 28-mm TV adapter for tripod-mounting. The practical transport case is included as standard.
