MULTI PAR 1

Compact 432 x 10 mm LED Lighting System incl. Transport Case

Item no.: CLMPAR1

Guarantee: 24 months

EAN: 4049521130656

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:Light Sets

Questions about the item?

Item highlights:

4 x 108 powerful, long-life 10 mm RGB LEDs
Professional 28-mm TV spigot for mounting
Optional footswitch for easy on stage controlling
Operated via DMX, in master/slave mode or standalone mode
Integrated microphone for sound control
Simple to operate using the four buttons and LC-Display
Sturdy metal housing
Practical transport case included as standard

Features

Music control
In music control mode, the device is controlled via the built-in microphone and can follow the rhythm of the music, for example.

RGB additive colour system
With additive colour blending, all colours and white are created by blending different amounts of red, green and blue light. The RGB system is used in televisions, computer monitors and digital cameras, for example.

LED technology
LEDs are ideal for use in lighting systems: They are bright and have a low level of heat dissipation, a long operating life and low energy consumption. Moreover, LED systems often weigh less than conventional lighting systems.

Master & slave
Master/slave operation allows identical DMX devices to be controlled by a DMX device of the same model and software standard. All the devices are connected by DMX cables in series. The master device is then set to run in standalone mode and the slave devices are set to run in slave mode.

Environment-friendly
The high energy efficiency, the long service life of the LED lamps and the low level of heat dissipation make this device particularly environment-friendly.

Strobe
Strobes emit fast flash sequences, which makes movements appear “frozen” and creates a kind of slow-motion effect.

DMX512
Communication standard DMX512 was developed specially for lighting systems in 1986. Up to 32 DMX devices can be daisy-chained and controlled via a control source (e.g. a light mixer).

Standalone mode
In standalone mode, the device functions are controlled via integrated programmes, so no light mixer or “master” controller is required.

Specifications

Product type

LED Lighting Systems

Type

Indoor

Colour spectrum

RGB

Number of LEDs

4 x 108

LED type

10 mm

Dispersion

25 °

DMX input

XLR 3-pin male

DMX output

XLR 3-pin female

DMX mode

15-channel, 6-channel, 9-channel

DMX Functions

colour fade, colour jump, master dimmer, RGB, sound control, Strobe

Standalone modes

Auto run, colour change, colour fade, slave mode, sound control, static colour

Remote connection

XLR 5-pin female

Controls

Enter, Mode, Value Down, Value Up

Indicators

multifunction LC display

Operating voltage

100 V AC - 250 V AC

Power consumption

50 W

Power supply connector

IEC power connector male, IEC power connector female

Housing material

Metal

Cabinet colour

Black

TV spigot

28 mm

Width

1.030 mm

Height

290 mm

Depth

100 mm

Weight

7 kg

Description

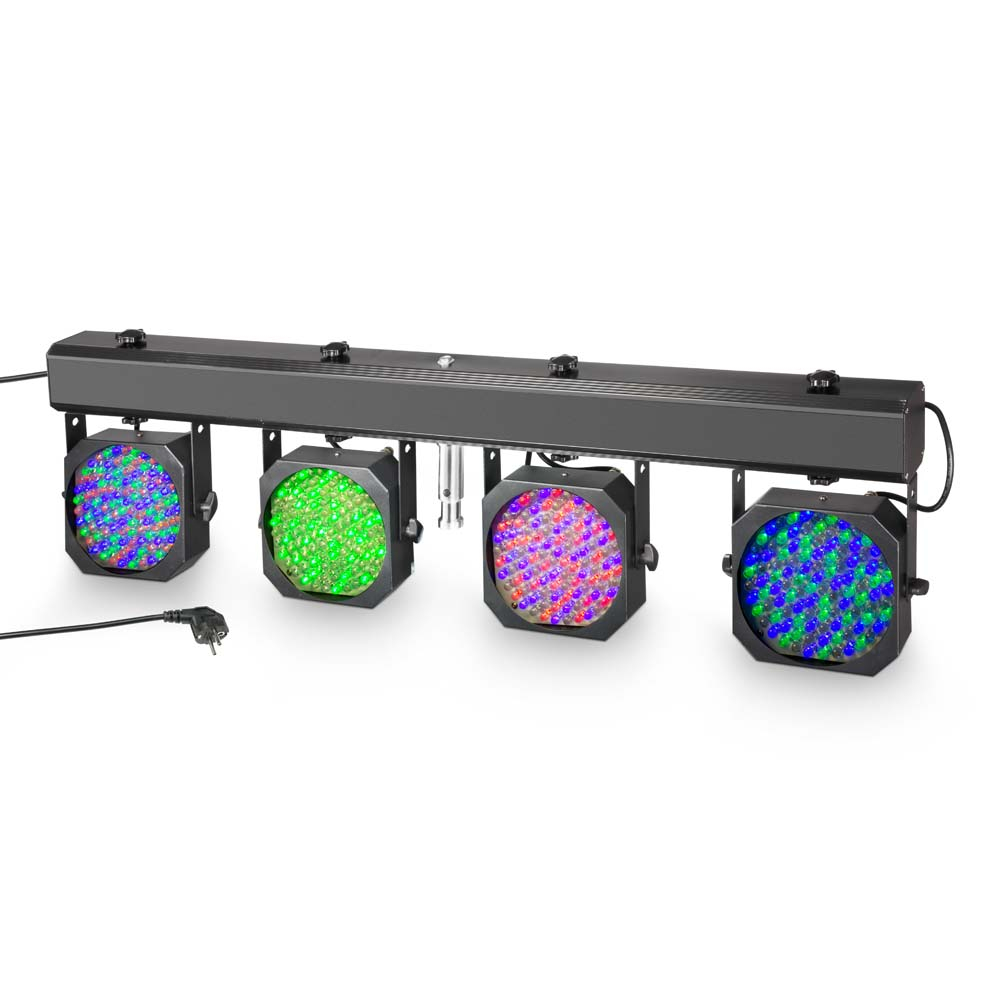

MULTI PAR 1

The four compact flat cans mounted on a bar with integrated control make the CLMPAR 1 the ideal basic kit for stage lighting. Each of the four flat cans is fitted with 108 ultra-bright 10-mm LEDs, creating awe-inspiring brightness and the perfect colour mix.

The CLMPAR 1 is equipped with 3-pole XLR inputs and outputs to enable actuation via DMX with 6, 9 or 15 channels. Alternatively, the CLMPAR 1 can be actuated by an optional controller. Of course, the CLMPAR 1 also works in standalone mode, with a microphone for sound control integrated into the bar. A 4-way foot controller is available as an optional extra.

The CLMPAR1 is powered via a removable earthing contact cable and is equipped with a 28-mm TV adapter for tripod-mounting. The practical transport case is included as standard.
