Item no.: CLZB60CLSD
Guarantee: 24 months
EAN: 4049521217753
Sliding scale: 1
Unit: Piece
Packaging unit: 2
Series:ZENIT® Series
Item highlights:
- Professional battery-powered W-DMX™ PAR spotlight with IP65 protection rating
- 4 x 15 W RGBW Cree LEDs with 1900 lm luminous flux for especially consistent colour blending
- Long-life, powerful lithium-ion battery for reliable operation
- Battery management system prevents overcharging and deep discharging
- Built-in 2.4 GHz W-DMX™ receiver
- Control via W-DMX™, DMX, RDM, IR remote control or display
- Includes 2 specially developed diffusion lenses for adjustable beam angle of 11°, 25° and 40°. Elliptical diffuser 60°x10° available as accessory
- High-resolution colour blending and dimmer response with 16-bit technology
- OLED display with 4 touch-sensitive controls for simple configuration
- Access lock against unauthorised changes to menu settings
Features
RGB additive colour system plus white LEDs
Additional white LEDs create more contrast and clearer colour boundaries. What is more, they improve the creation of white and pastel colours.
Specifications
Description

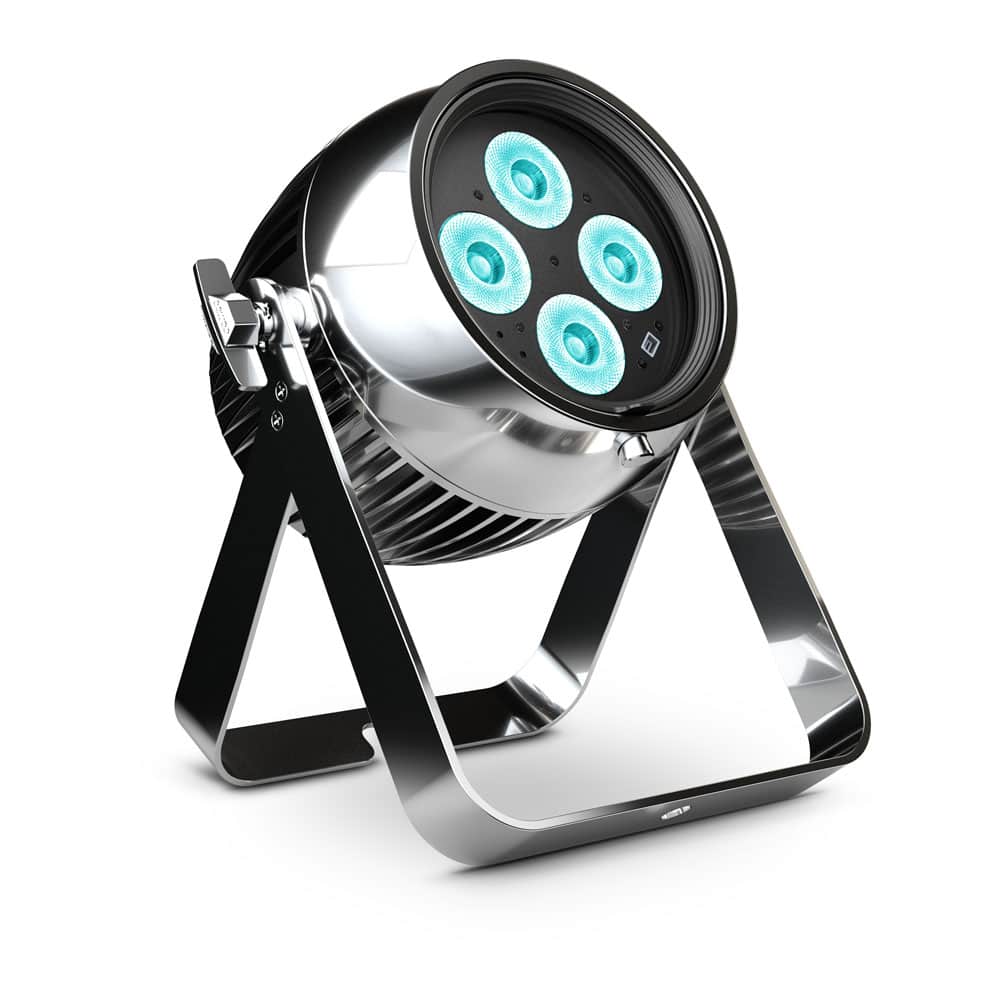

ZENIT® B60 C LSD
With battery operation, built-in wireless DMX and IP65 rating, the Cameo ZENIT® B60 is ready for demanding indoor and outdoor lighting applications. The highly professional PAR light sports four 15 W RGBW Cree LEDs with a 50,000 hour lifetime and powerful 1,900 lm output for brilliant, uniform colours with a precise 11° beam spread. For extra versatility it comes with two specially designed light shaping diffusers offering a choice of 25° or 40° beam angles while maintaining output.
In addition to seven modes of DMX, RDM and IR remote or manual control via the fixture’s display the ZENIT® B60 incorporates a 2.4 GHz W-DMX™ receiver. Developed by Wireless Solution Sweden AB, W-DMX™ has become the unofficial standard for professional wireless lighting control. The luminaire’s super capacity lithium-ion battery is made providing reliable performance up to 24 hours from a single charge with adjustable runtime in one hour increments. An intelligent control automatically calculates brightness, and the PAR light’s battery management system prevents overcharging and exhaustive discharge for extended battery life.
Sporting a 3,600 Hz refresh rate for flicker-free performance and highly efficient convection cooling for noiseless operation, the ZENIT® B60 is perfect for motion picture and TV applications. It utilises 16-bit technology for smooth high-resolution colour mixing and dimming and includes individual LED colour temperature correction plus a selection of dimming curves with adjustable response. The aluminium housing features a bright OLED display with four touch buttons for easy configuration while a security lock prevents unauthorized menu access.
Spare parts
Downloads
Name | Type | Format | File size | ||
---|---|---|---|---|---|
CLZB60CLSD User Manual | User Manual | 3.19 MB | |||
CLZB60CLSD Quick Start Guide CAMEO Gearbagtable | Quick Start Guide | 53.74 KB | |||
CLZB60CLSD Ecolabel | Ecolabel | 114.71 KB | |||
Cameo REACh Declaration Adam Hall GmbH | REACh Declaration | 493.71 KB | |||
CLZB60CLSD Software Runtime Calculator | Software | .zip | 38.08 KB | ||
Cameo RoHS Confirmation Adam Hall GmbH | RoHS Confirmation | 197.63 KB | |||
CLZB60CLSD Declaration of Conformity EG | Declaration of Conformity | 140.23 KB | |||
CLZB60CLSD DMX Control Table | DMX Control Table | 66.59 KB | |||
CLZB60CLSD Firmware Firmware Update V1.7/LightUploader, Rel. Notes & Manual included | Firmware | .zip | 1.63 MB | ||
CLZB60CLSD Fixture Library Daslight | Fixture Library Daslight | .zip | 49.81 KB | ||
CLZB60CLSD Fixture Library Grandma2 | Fixture Library Grandma2 | .zip | 13.76 KB | ||
CLZB60CLSD 2D Drawing | 2D Drawing | .DWG | 1.82 MB |
