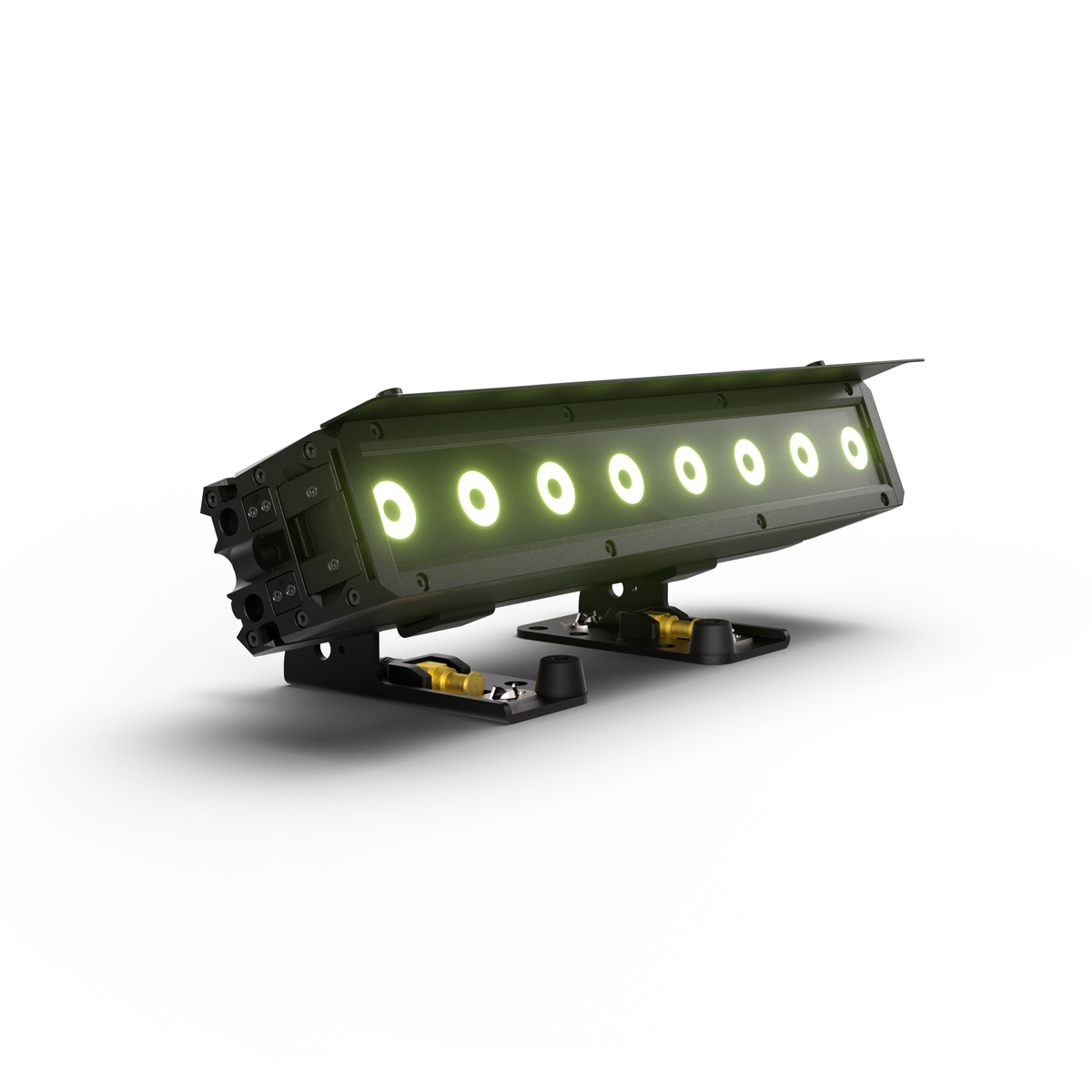

PIXBAR® 600 Short IP G2

PIXBAR® 600 Short IP G2

IP65 RGBWAUV LED Bar Short

Item no.: CLPB600SIPG2

Guarantee: 24 months

EAN: 4049521918957

Sliding scale: 1

Unit: Piece

Packaging unit: 2

Series:PIXBAR® Series

Versions:

Item highlights:

  • Simple and efficient interconection of up to 3 units with the optional STACK-KIT
  • Adjustable feet for truss-bracing positioning
  • Optional VERTI-MOUNT for standing or hanging application
  • Easy slide-in filter mechanism with locking mechanism
  • Fanless cooling design
  • High brightness and accurate colour mixing
  • SPIN16® included

Features

RGBWA
Additional white and amber-coloured LEDs expand the GB spectrum, creating more contrast as well as clearer colour boundaries. What is more, they improve the creation of white and pastel colours. The amber-coloured LEDs create more powerful and warmer colours with greater saturation.

Specifications

Illuminant type
RGBWA+UV LED
LED data
8 x 15 W RGBWA+UV LED
Luminous flux
5,300 lm
Exchangable lens
No
Exchangable optics
No
Beam/Field angle
Beam: 24° / Field: 46°
LED PWM frequency
650 Hz, 1,530 Hz, 3,600 Hz, 12 kHz, 18.9 kHz, 25 kHz
Dimmer resolution
16 Bit
Dimmer curves
Linear, Exponential, Logarithmic, S curve
Colour mix functions
RGB
LED colours
Red, Green, Blue, White, Amber, Ultra violet
Colour control
Analog modulation, Direct (single control), CTC with tint
Correlated colour temperature (CCT)
2,200 - 8,000 K
Halogen simulation redshift/DTW
No
Colour rendering index (CRI)
> 77
Strobe
0 - 20 Hz
Controller protocols
DMX512, RDM
Number of DMX control modes
15
Additional DMX features
DMX delay, System settings
RDM features
DMX adress, DMX mode
Stand alone operating modes
Autorun, Master/slave, Static, Endless loop
Data in connector
XLR 5-pole male
Data out connector
XLR 5-pole female
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Rated power
92 W
Rated current
0.43 A
Inrush current
42 A
Mains connector
Mains plug device outdoor male & TRUE1®
Power out connector
Mains plug device outdoor female & TRUE1®
Chassis material
Die-cast aluminium
Colour
Black
Cooling system
Convection cooling
Protection class
IP65
Risk group
2
Noise level in operation
0 dB
Ambient temperature
-10 - 45 °C
Maximum air humidity (non-condensing)
100 %
Width
518 mm
Height
205 mm
Depth
162 mm
Weight
7.5 kg

Description

PIXBAR® 600 Short IP G2

Introducing the short-version of Cameo PIXBAR®-Series. With its sophisticated features and durable design, it is the ideal lighting option for any event, whether it is held indoors or outdoors. The PIXBAR® short models 400 IP or 600 IP are equipped with RGBW or RGBWAuV LEDs, IP65 certification, and well-thought-out accessories.

Whether hanging or standing, the optional connection system allows for a variety of creative designs and placement options creating unique lighting effects and set designs. Up to three units can be connected vertically with the optional VERTI MOUNT and STACK KIT for a seamless and synchronized lighting effect. With the M20 adapter the new PIXBAR®-Series can be mounted on M20 threaded base plates. Truss mounting is also made easier thanks to the adjustable feet. All filters can be inserted quickly and easily using the slide-in mechanism of the filter rail.

Additionally, the IP65 LED bars operate quietly thanks to the fanless cooling system, while still ensuring a strong light output. SPIN16® adaptors are also included with each device. So, what are you waiting for? Upgrade your lighting game with the PIXBAR®-Series.
