NP3RX-BAG

NP3RX-BAG

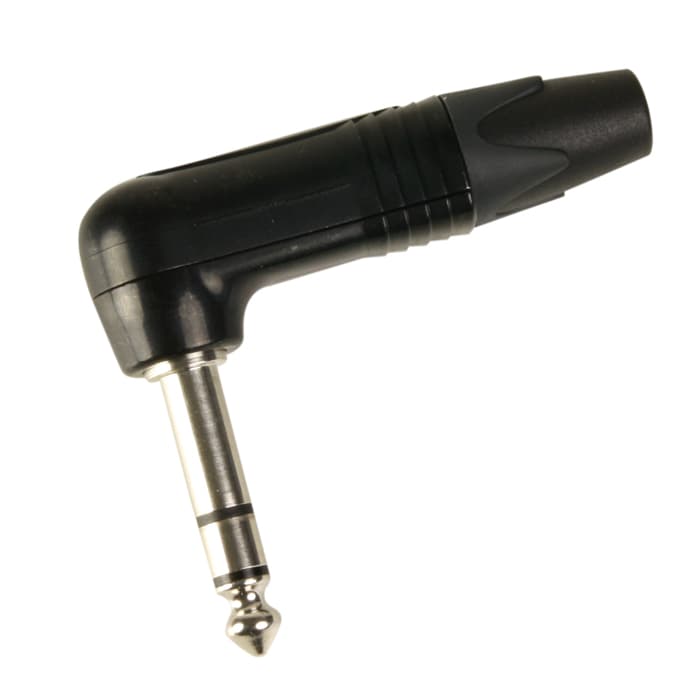

Jack TRS Neutrik® | angled plug

Item no.: NP3RXBAG

Guarantee: 12 months

EAN: 7613187000744

Sliding scale: 1

Unit: Piece

Packaging unit: 25

Versions:

Item highlights:

3 pole 1/4" professional phone plug, nickel contacts, black shell

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Features & Benefits
  • Extra slim 1/4" plug for highest packing density
  • Robust diecast shell in stylish design
  • Proven chuck type strain relief for reliable cable retention
  • Sleek design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact

Specifications

Product type
Plugs and Connectors
Type
Jack Connectors
Poles
3
Gender
male
Cable diameter
4 - 7 mm
Contacts
nickel plated
Connection type
solder contacts
Color
Black
Housing
die-cast zinc
Strain relief
polyacetal
Length
61.3 mm
Diameter
14.8 mm
Weight
0,033 kg

Downloads

Name
Type
Format
File size
NP3RXBAG Installation Template Installation Template.pdf755.23 KB
NP3RXBAG 2D Drawing 2D Drawing.pdf75.54 KB
Product ImagesImages & Artwork.zip-

Nothing there?
You can find more downloads in our download centre.
