Item no.: K4CJM2
Guarantee: 24 months
EAN: 4049521702082
Sliding scale: 1
Unit: Piece
Packaging unit: 100
Series:4 Star
Versions:
Item highlights:
- TS jack plug from our 4 Star Series
- Unbalanced jack connector
- Metal strain relief
- With spring bend protection
- Suitable for cables with a diameter from 5 mm
Specifications
Plug type
6.3 mm Jack TS
Plug contact
Nickel plated
Connection type
Soldering contacts
Chassis material
Zinc cast
Grommet material
Plastic
Suitable cable diameter
5 - 7.5 mm
Length
70 mm
Diameter
13 mm
Weight
8 g
Description

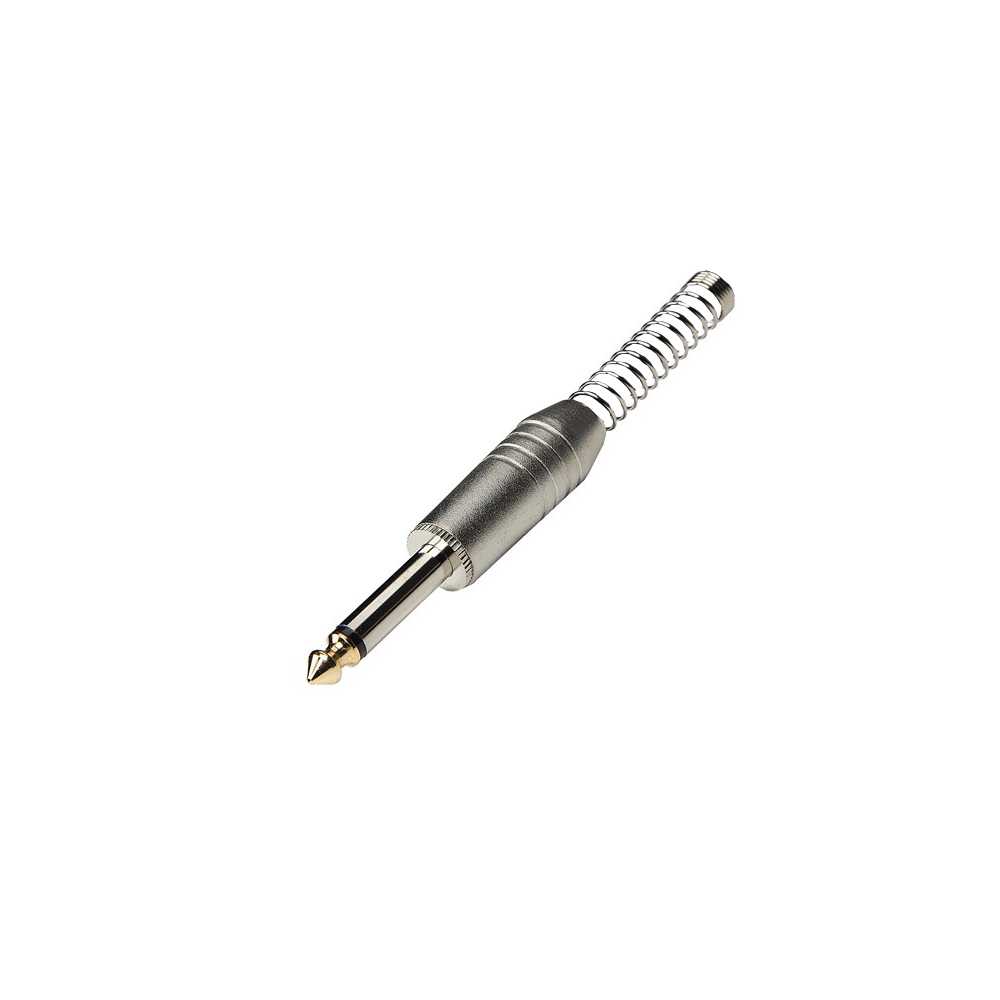

4 STAR CJM2
Our large selection of different plugs includes this 6.3 mm jack plug from our 4 Star series. The cable is connected to the plug by soldering and the metallic strain relief gives the whole structure the necessary stability at the end, also thanks to the heat shrink tubing.
Downloads
Name | Type | Format | File size | ||
|---|---|---|---|---|---|
| Adam Hall Connectors REACh Declaration Adam Hall GmbH | REACh Declaration | 493.71 KB | |||
| Adam Hall Connectors RoHS Confirmation Adam Hall GmbH | RoHS Confirmation | 197.63 KB | |||
| Adam Hall Connectors Tender Documents Adam Hall Stage Equipment | Tender Documents | .zip | 73.04 KB | ||
| Adam Hall Connectors Manufacturer's Declaration ADAM HALL | Manufacturer's Declaration | 89.42 KB | |||
| Product Images | Images & Artwork | .zip | - |
