Item no.: K4CJM2ABLK
Guarantee: 24 months
EAN: 4049521809835
Sliding scale: 1
Unit: Piece
Packaging unit: 300
Series:4 Star
Versions:
Item highlights:

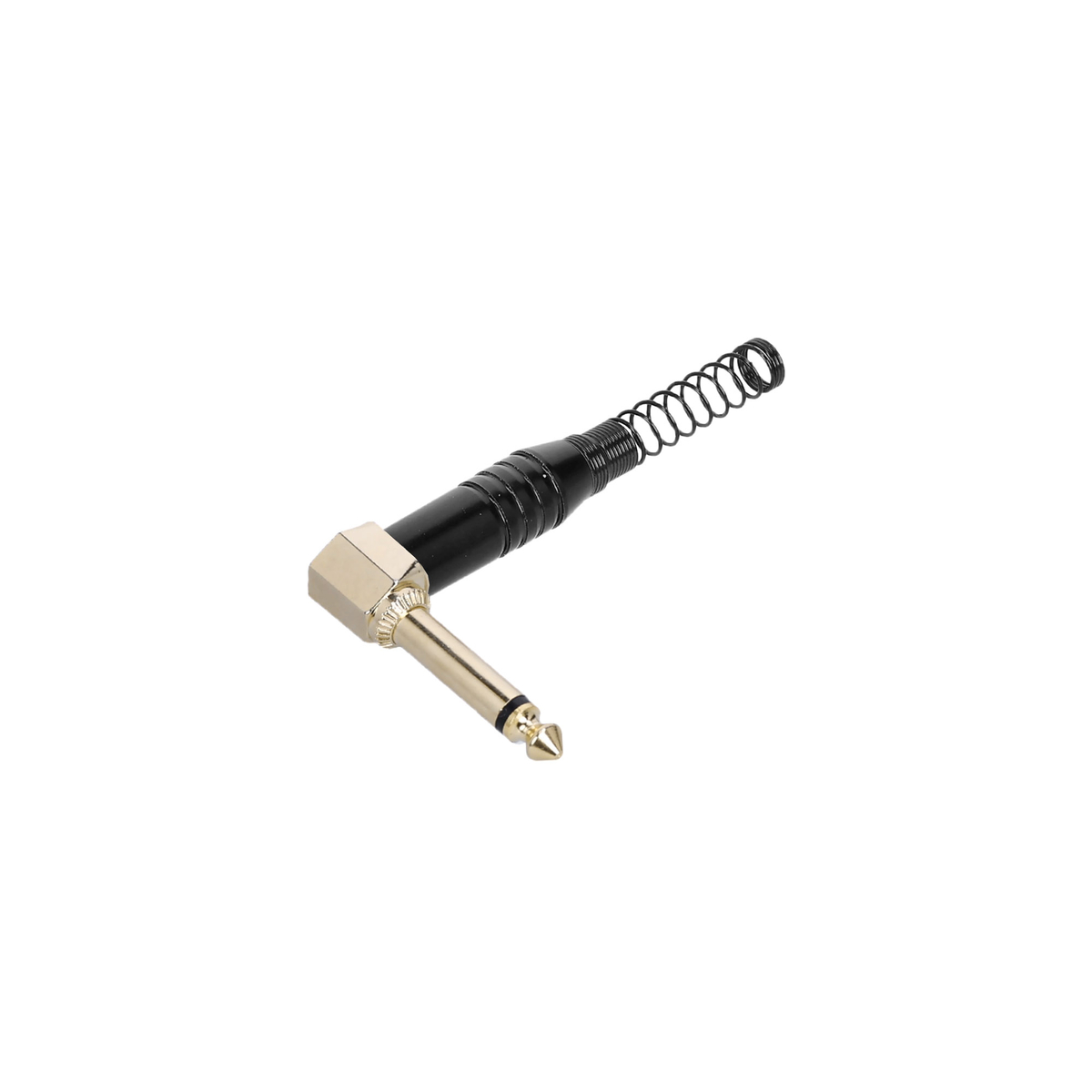

- TS Jack connector from our 4 STAR SERIES
- Unbalanced angled jack plug
- Strain relief made from metal
- With spring bending protection
- Suitable for cables with a diameter of min 5 mm
Specifications
Plug type
6.3 mm Jack TS angled
Plug contact
Gold plated
Connection type
Soldering contacts
Chassis material
Zinc cast
Suitable cable diameter
5 - 7.5 mm
Length
46.3 mm
Diameter
12.5 mm
Depth
46.5 mm
Weight
23 g
Description
4 STAR C JM2 A BLK
Our large selection of different plugs includes this 6.3 mm jack plug from our 4 Star series. The cable is connected to the plug by soldering and the metal strain relief gives the whole structure the necessary stability at the end.
