SAT 82 G2

SAT 82 G2

8" Installation Monitor passive black

Item no.: LDSAT82G2

Guarantee: 24 months

EAN: 4049521154690

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:SAT G2

Versions:

Item highlights:

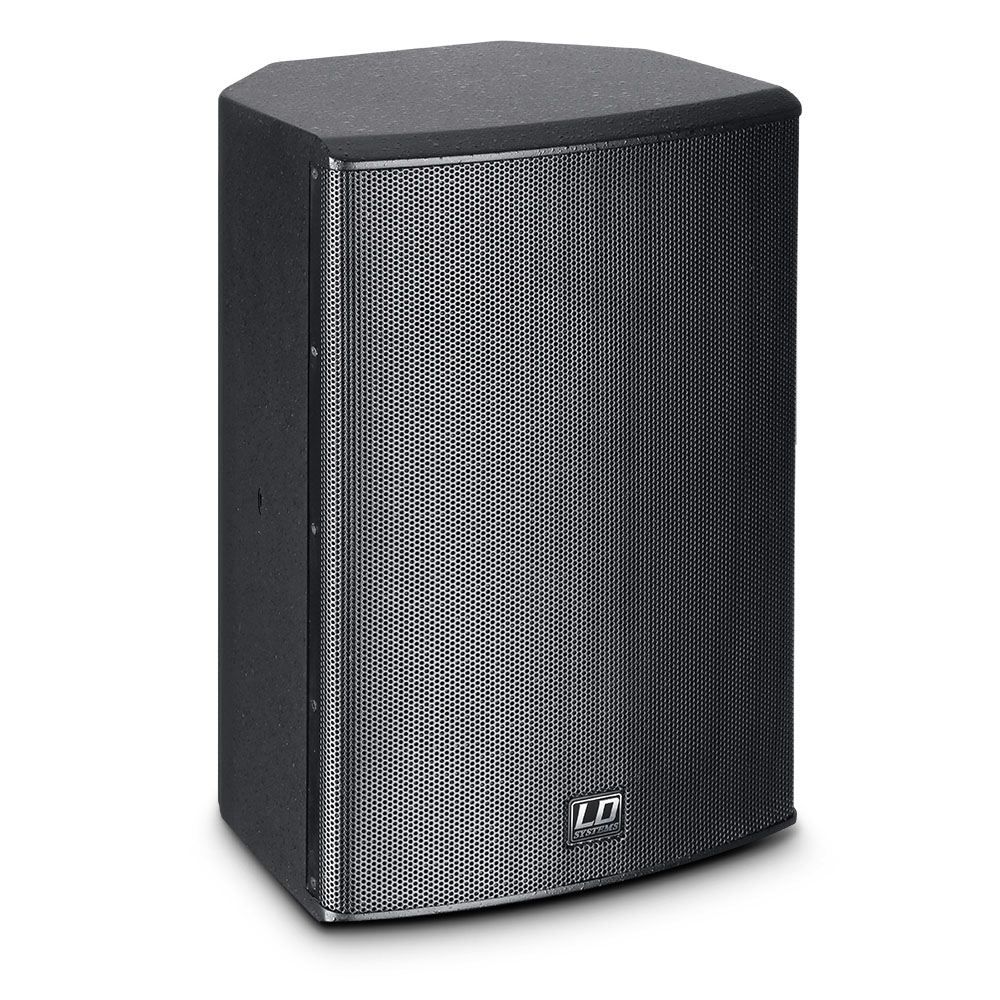

The LD Systems SAT82G2 is a compact, especially dependable 2-way speaker for demanding installation solutions. It blends unobtrusively into practically any surroundings and thus is also suitable for home systems.

The bass-reflex design is loaded with an 8" custom woofer and a 1“ silk dome tweeter with wave guide, which permit powerful and extremely dynamic reproduction within a range of 50 Hz - 20 kHz with a dispersion angle of 60° and attain a maximum sound- level pressure of 114 dB. The LD SAT82G2 is rated for a RMS power load of 120 W.

The sturdy cabinet is made of 12mm MDF with a durable textured finish and is available in black and white. M6 rigging points and an included mounting bracket provide numerous possibilities for mounting. Additionally, a universal joint mount is available as an accessory. The SAT82G2 has spring terminal connectors.

Specifications

Type
Passive
Power handling (RMS)
120 W
SPL (1 W/1 m)
93 dB
Max. SPL peak
114 dB
Frequency response
50 - 20,000 Hz
Impedance
8 Ω
Speaker system
2-way system
Beam angle
Hor.: 60° / Vert.:60°
Number of inputs
1
Input connector types
Speaker terminal 2-pole
Colour
Black
Size
8 "
Magnet
Ferrite
Driver size
1 "
Magnet
Ferrite
Design
Bass reflex
Mounting type
Ceiling bracket
Cabinet material
Medium-density fibreboard MDF
Material thickness
15 mm
Coating
Painted (textured lacquer)
Front grille material
Aluminium
Width
274 mm
Height
410 mm
Depth
243 mm
Weight
7 kg
Included accessories
Mounting bracket
