A new model exists for this item:

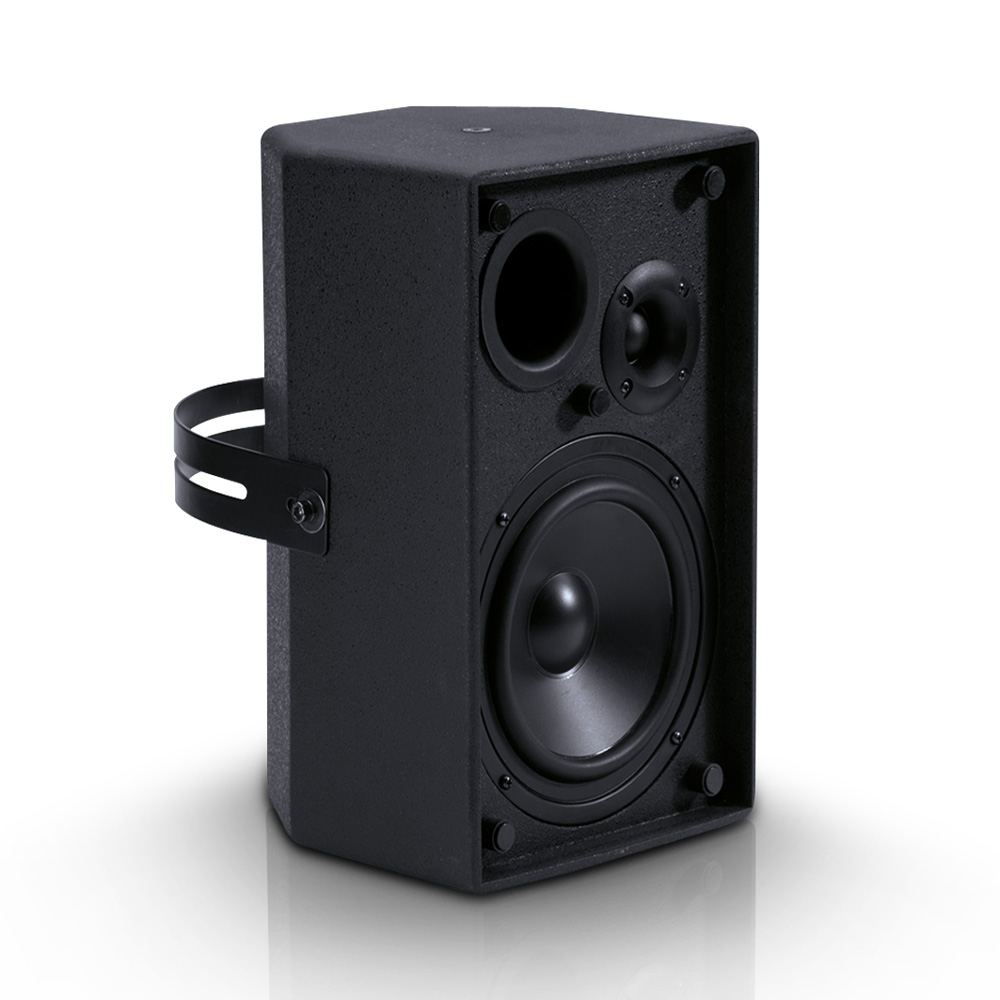

LD Systems
SAT 62 A G2
LDSAT62AG2
Item no.: LDSAT62A
Guarantee: 24 months
EAN: 4049521067549
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:SAT
Item highlights:
The active version of SAT62 is perfect for installations but also as active monitor for many applications. The 50 W RMS powered cabinet has a built in Auto Power Mode which will go after 3 minutes without any signal into the stand by mode.
Specifications
Product type
Installation Loudspeakers
Type
Wall-mounted Loudspeaker
Low/mid Woofer dimensions
6.5 Inch
Woofer dimensions (mm)
165 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
HF driver dimensions
1 Inch
HF driver dimention (mm)
25 mm
HF driver magnet
Ferrite
HF driver brand
Custom-made
Power amplifier (Class A)
Class A/B
Dispersion (H x V)
60 x 60 °
System Power (RMS)
50 W
Frequency response
55 - 20,000
Max. SPL
108 dB
Protection circuits
over voltage, HF Driver
Controls
volume control, switchable auto power mode, mains switch (on/off)
Indicators
Power
Line input connectors
XLR, 6.3 mm jack
Line output connectors
XLR
Power supply
transformer
Operating voltage
220 V AC - 240 V AC, 50-60 Hz
Cabinet material
12 mm MDF
Cabinet surface
texture paint
Cabinet colour
Black
Cabinet construction
Bass Reflex
Width
200 mm
Height
320 mm
Depth
200 mm
