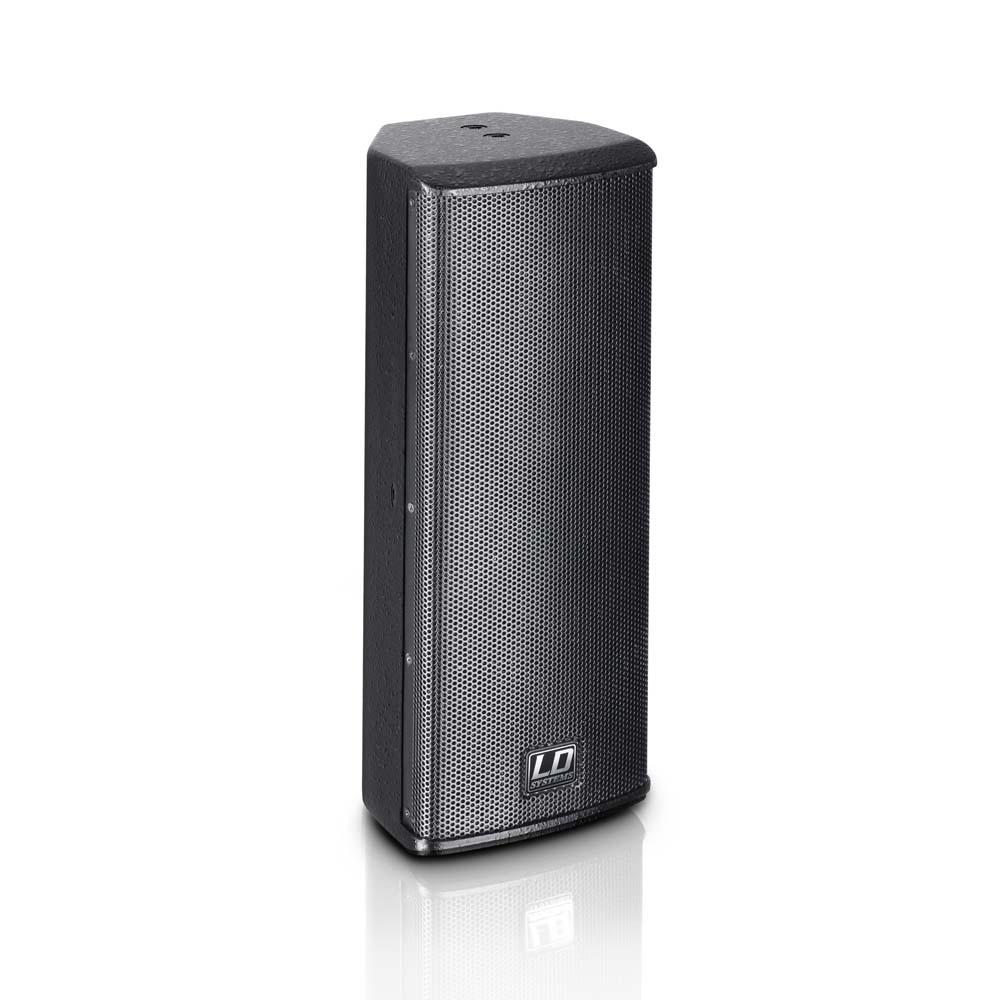

SAT 242 G2

2 x 4" passive Installation Speaker black

Item no.: LDSAT242G2

Guarantee: 24 months

EAN: 4049521154713

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:SAT G2

Versions:

Questions about the item?

Find a dealer

Item highlights:

The closed design of the sleek, compact speaker is loaded with 4" custom woofers and a 1“ silk dome tweeter with wave guide, which provide for a maximum sound-level pressure of 108 dB. The LD SAT242G2 is rated for 100 W RMS power can can be used alone as a full-range speaker or with a subwoofer in the in the LD installation series for bass expansion.

The cabinet of the SAT242G2 is made of 12mm MDF with a durable textured finish and is available in black and white. It is connected via spring terminals. M6 inserts and an included mounting bracket provide numerous possibilities for mounting; a universal joint mount is available as an accessory.

Specifications

Product type

Installation Loudspeakers

Type

Wall-mounted Loudspeaker

Low/mid Woofer dimensions

2 x 4 "

Woofer dimensions (mm)

2 x 101 mm

Woofer magnet

Ferrite

Woofer brand

Custom-made

HF driver dimensions

1 "

HF driver dimention (mm)

25 mm

HF driver magnet

Ferrite

HF driver brand

Custom-made

Dispersion (H x V)

60 x 60 °

Load rating (RMS)

100 W

Frequency response

75 - 20000

SPL (1W/1m)

88 dB

Max. SPL

108 dB

Impedance

8 Ohm(s)

Protection circuits

HF Driver

Loudspeaker inputs

Speaker input connections

Clamp connector

Speakers per amplifier channel (DSP44/45K)

Cabinet material

12 mm MDF

Cabinet surface

texture paint

Cabinet colour

Black

Cabinet construction

Closed

Width

140 mm

Height

378 mm

Depth

135 mm

Weight

4,15 kg
