Item no.: LDCIWSUB10
Guarantee: 24 months
EAN: 4049521171154
Sliding scale: 1
Unit: Piece
Packaging unit: 4
Series:CONTRACTOR
Item highlights:
- Elegant in-wall subwoofer
- 10" woofer
- Low installation depth
- 150 watts continuous power
- Deep frequency response up to 40 Hz
- Easy and safe assembly
- For hotels, restaurants, bars, lounges, shopping centres, conference rooms etc.
Specifications
Product type
Installation Loudspeakers
Type
Ceiling-mounted Loudspeaker, Installation Subwoofer, Wall-mounted Loudspeaker
Version
in-wall installation subwoofer
Speaker type
Subwoofer
Color
white
Woofer dimensions
10 "
Woofer dimensions (mm)
254 mm
Cut-out measurement
271 x 271 mm
Mounting depth
90 mm
Min. Material Thickness
9 mm
Max. Material Thickness
37 mm
Impedance (low-impedance)
8 Ohm(s)
Frequency response
40Hz - 250 (x-over required) Hz
Sensitivity (1 W / 1 m)
88 dB
Low-impedance rated load (RMS)
150 W
Width
303 mm
Height
303 mm
Depth
102 mm
Weight
2,77 kg
Description

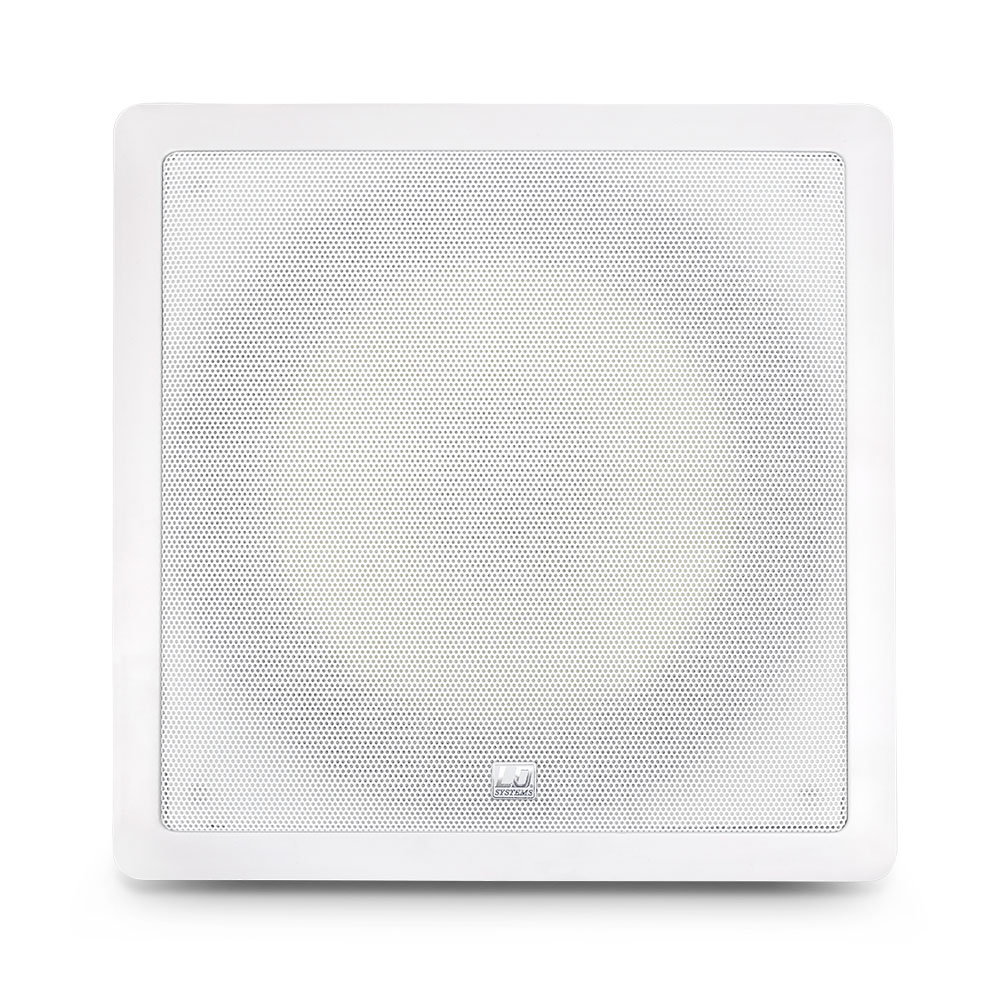

Contractor CIW SUB 10
The CIW SUB 10 is used as a bass extension for main loudspeakers from the Contractor Series. It is designed for a safe and trouble-free installation in walls and has a power capacity of 150 watts of continuous power. Its frequency response extends to 40 Hz; the sound pressure level is 88 dB at 1 W /1 m. A crossover is required for system integration.
