WT PB 40

WT PB 40

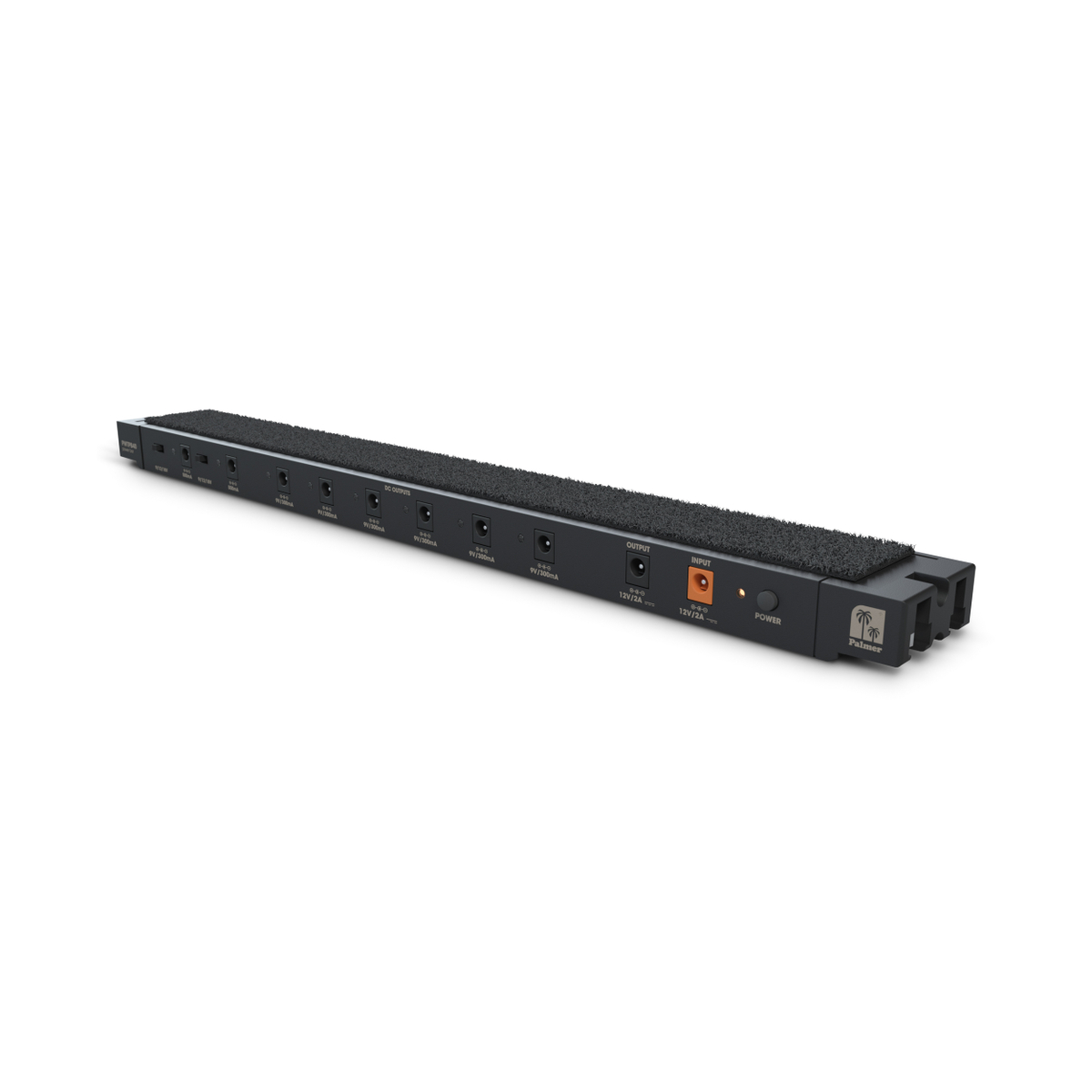

Power Supply with 8 Outputs for PEDALBAY® 40

Item no.: PWTPB40

Guarantee: 60 months

EAN: 4049521407468

Sliding scale: 1

Unit: Piece

Packaging unit: 10

Series:Palmer Power Supplies

Versions:

Item highlights:

  • Space-saving universal power supply unit through patented integration into the pedalboard
  • 8 single isolated centre-negative outputs
  • Two 9, 12 or 18 V switchable outputs
  • Total current 2,000 mA
  • Safe use thanks to short circuit and overload protection for each output
  • Built-in LED power and function indicators

Specifications

Product type
Power Supplies
Mains connector
Plug-in power supply
Input voltage
100 - 250 V
Outputs
8
Output connectors
2.1 x 5.5 mm
Material
Aluminium
Surface
anodized, Powder coated
Output voltage
12 V, 18 V, 9 V
Max. output current
2 A
Isolated outputs
Yes
Polarity
Center negative
Cord length
150 + 150 cm
Indicators
Fault, Power
Controls
Output voltage selector
Width
450 mm
Depth
50 mm
Height
24 mm
Weight
0,65 kg
Accessories (included)
5x DC cable straight to angled 16cm long, 9x DC cable straight to angled 60cm long, hook-and-loop tape, M6 Nuts, M8 Nuts, Power supply

Description

WT PB 40

Attention stage-musicians: The Palmer Powerbar greatly reduces your gig set-up time thanks to the universal power supply which can be completely and discreetly integrated into the pedalboard. Simply replace the first crossbar with the power supply to experience the familiar high quality: Eight single isolated centre-negative outputs and two switchable outputs of 9, 12 or 18 volts for added flexibility. Optimum performance is provided by a total current of 2,000 mA. The best thing: no more forgotten power supplies or unnecessary cable clutter on-stage means no more stress.
