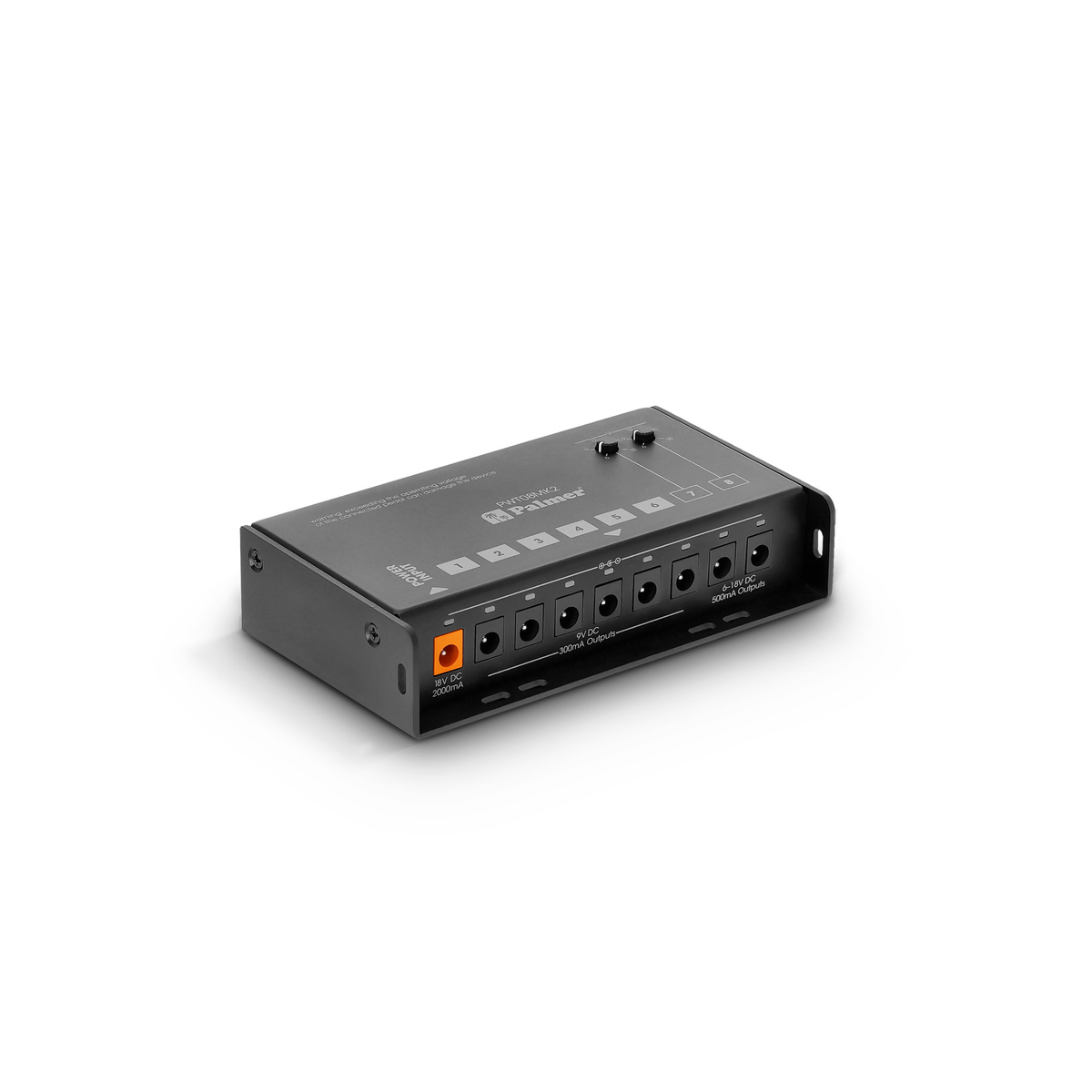

PWT 08 MK2

Universal 8-Outlet Pedalboard Power Supply

Item no.: PWT08MK2

Guarantee: 60 months

EAN: 4049521811456

Sliding scale: 1

Unit: Piece

Packaging unit: 20

Series:Palmer Power Supplies

Questions about the item?

Find a dealer

Item highlights:

Fully regulated universal power supply for guitar effects
Six single isolated centre negative 9V DC outlets (300 mA each)
Two single isolated variable voltage outlets: 6-18V DC (500 mA each)
Total output capacity: 2,000 mA
Short-circuit and overload protection for each individual outlet
DC cables and mains adapter for EU, UK and US included

Specifications

Product type

Power Supplies

single isolated DC outputs

Output 1-6

9 V (300 mA max)

Output 7-8

6 V - 18 V (500 mA max)

Output connectors

2.1 x 5.5 mm

Output voltage

6 V - 18 V

Individually isolated outputs

Yes

Polarity

Center negative

Indicators

Power, status LED (green: output OK / red: error)

Controls

Output voltage regulator

Depth

80 mm

Width

140 mm

Height

32 mm

Weight

0,293 kg

Accessories

Plug-in power supply PW18VDCUNI (EU/UK/US), 8x DC cable (60cm), 4x rubber feet

Noise

< 40 µV (Output 1 - 8)

Relative Humidity

< 80 % ( non-condensing )

Ambient temperature (in operation)

0°C - 40 °C

Description

PWT 08 MK2

No unwanted noise, plenty of output for power-hungry pedals, and slim design

The PWT 08 MK2 power supply stands out with its slim design, which easily fits under almost any pedal boards. The total capacity of 2,000 mA is distributed over eight individually isolated 9V DC outputs.

Two of the outputs are adjustable between 6 and 18 volts to simulate the voltage drop of old batteries, or to feed effects pedals with higher voltage requirements. In addition, these two individually isolated outputs provide 500 mA each, making them ideal for digital effects pedals with high current requirements. The other six individually isolated outputs provide 300 mA each.

The PWT 08 MK2 power supply is regulated for a stable voltage supply, and is protected against short circuit and overvoltage issues. The PWT 08 MK2 pedalboard power supply is also equipped with a power LED on the input socket, and a two-colour LED on all outputs to indicate output status.

It comes with the appropriate US/UK/EU power adapter and a complete set of DC cables.

The PWT 08 MK2 is the ideal solution for a low-noise pedalboard that features power-hungry effects pedals.
