PAN 03

PAN 03

19" DI box 4-channel active

Item no.: PAN03

Guarantee: 60 months

EAN: 4049521049002

Sliding scale: 1

Unit: Piece

Packaging unit: 6

Series:Palmer 19-Inch Tools

Item highlights:

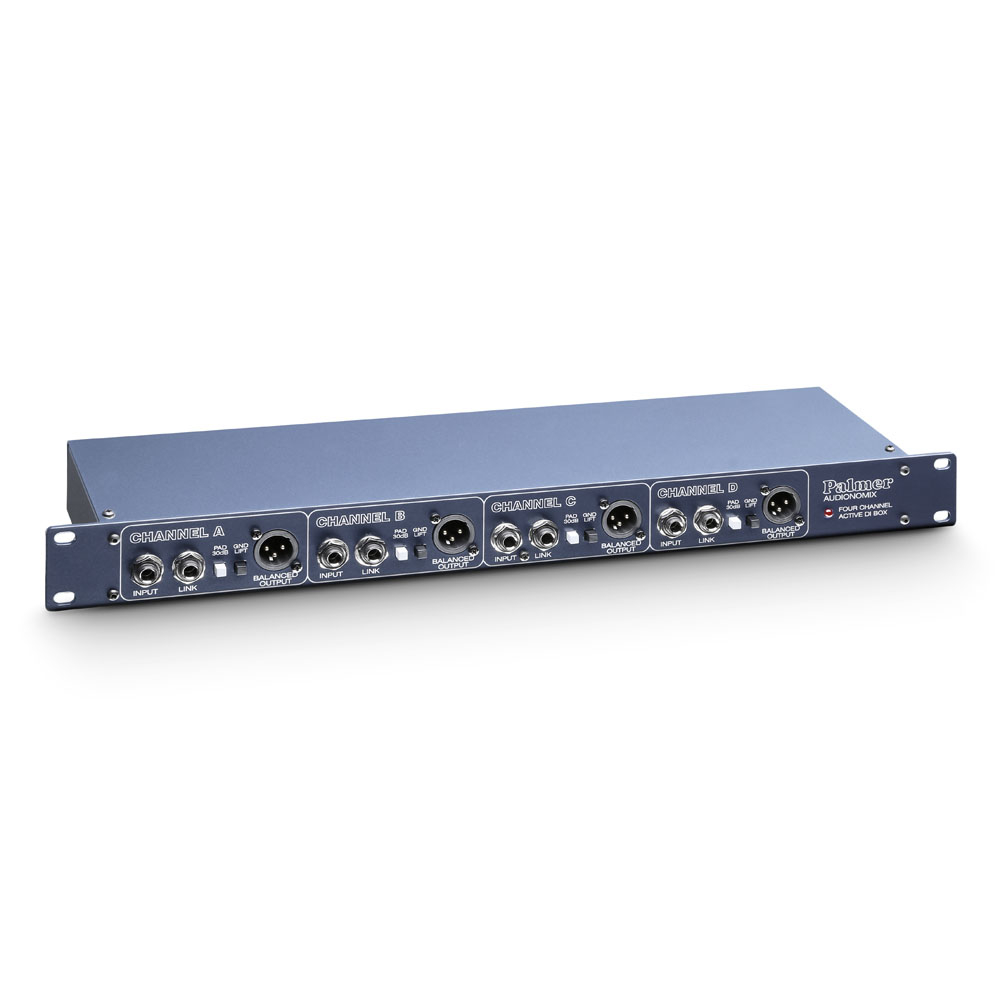

Active 4-channel DI box. Each channel has a jack input with a parallel output for passing through the signal. An attenuation switch (-30 dB) allows either a line or loudspeaker signal to be connected.Active 4 x DI box, 19" format. Technical specitications identicl to the PAN-02, however, the PAN-03 is built for mains operation. All connections and switches are located on the front panel, an additional parallel XLR output is located in back. 19 inch rack-mount format, 1 rack space, 90 mm front to back.

Specifications

Product type
DI boxes
Type
active
Channels
4
Inputs
4
Input connectors
6.3 mm jack
Max. input level
+ 45 dBu
Input impedance
(@ 60 Hz) 1 M Ohm(s)
Input pad
0 / -30 dB
Number of outputs
4 (+ 4 parallel XLR outs)
THRU outputs/channel
1
Output connectors
6.3 mm jack, XLR
Max. output level
+ 10 dBu
Output impedance
600 Ohm(s)
Frequency response
10 - 20000
Transformer balanced
Yes
Ratio
10 : 1
Indicators
Power
Controls
attenuator, ground lift
Power supply
external
Cabinet material
sheet steel
Cabinet surface
Powder coated
Width
480 mm
Width
19 "
Depth
90 mm
Height
45 mm
Height
1 U
Weight
1,6 kg
