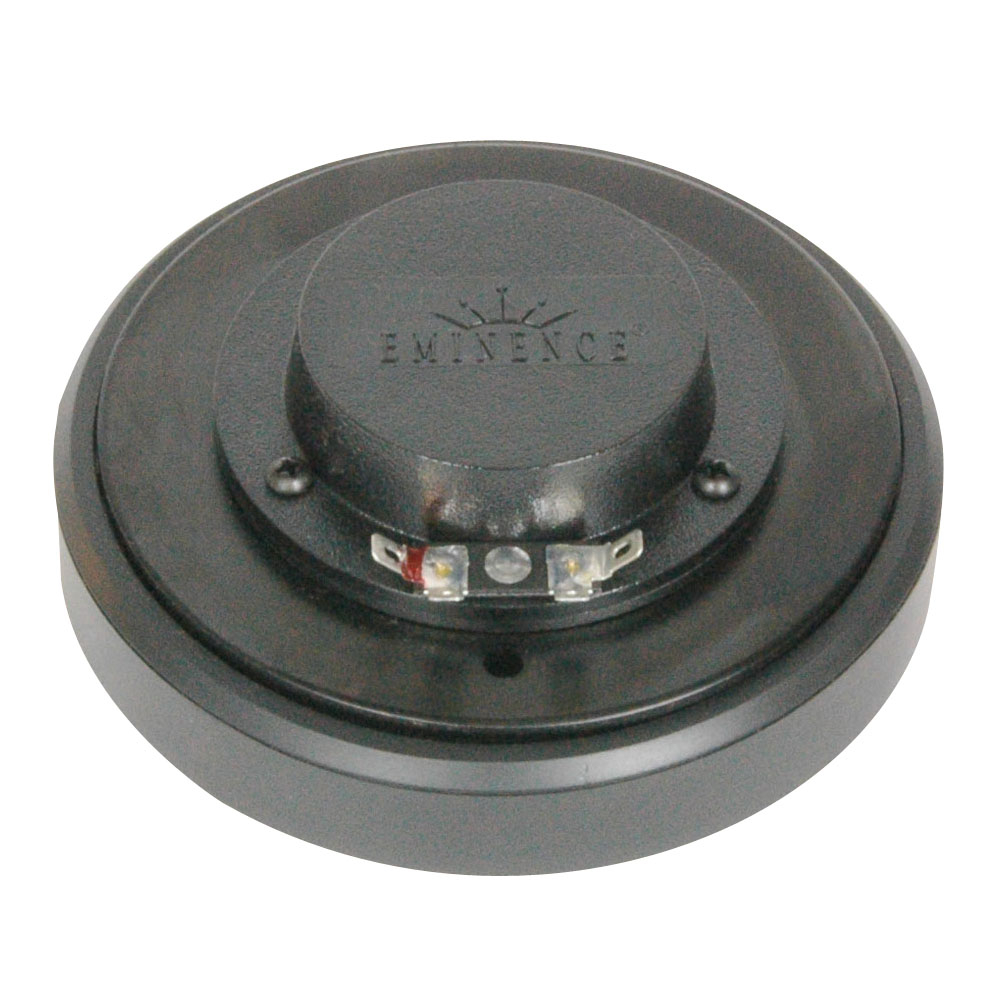

PSD 2002 S B
1" high-frequency Driver with screw thread 16 Ohms 80 W
Item no.: EPSD2002SB
Guarantee: 24 months
EAN: 4049521026270
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
1" high-frequency Driver with screw thread 80 W 16 Ohms
Specifications
Product type
High-frequency Drivers
Nominal Diameter
1 Inch
Nominal Diameter
25.4 mm
Voice Coil
2 Inch
Voice Coil
50.8 mm
Overall diameter
133.4 mm
Pitch Circle Diameter
228.6 mm
Depth
55.9
Nominal Impedance
16
Nominal Load Capacity
80 W
Sensitivity (horn 1 W / 1 m)
106.1
Frequency response
1200 Hz - 20000 Hz
recommended crossover frequency
1200 Hz
Voice Coil Carrier
Polymide
Diaphragm material
Titanium
Magnet
Ferrite
Recommended horn
LH290S
Threaded connector
1 3/8" 18 UNEF ext.
Mounting holes
2
Diameter of fixing holes
1/4-20
Pitch Circle Diameter (bolt on)
76.2 mm
