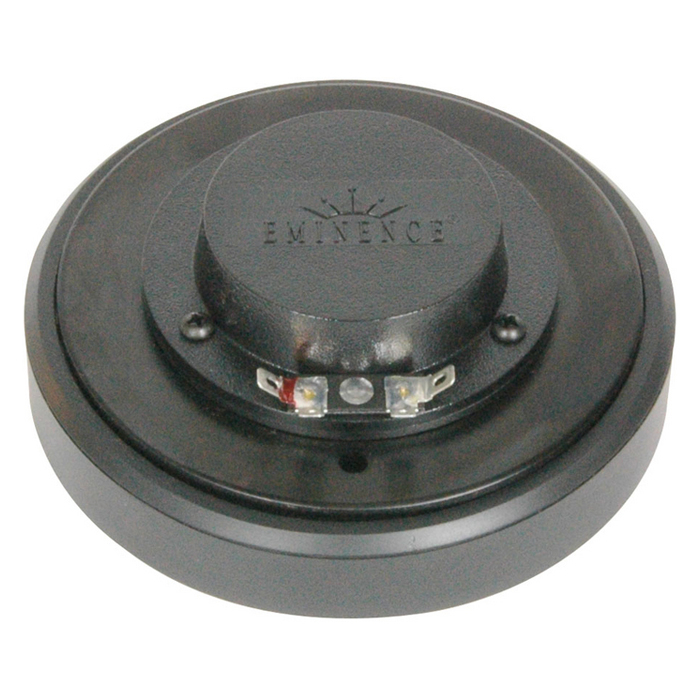

PSD 2002 B
1" high-frequency Driver 80 W 16 Ohms
Item no.: EPSD2002B
Guarantee: 24 months
EAN: 4049521026249
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
1" high-frequency Driver 80 W 16 Ohms
Specifications
Product type
High-frequency Drivers
Nominal Diameter
1 "
Nominal Diameter
25.4 mm
Voice Coil
2 "
Voice Coil
50.8 mm
Overall diameter
133.4 mm
Pitch Circle Diameter
228.6 mm
Depth
55.9 mm
Nominal Impedance
16 Ohm(s)
Nominal Load Capacity
80 W
Sensitivity (horn 1 W / 1 m)
106.1
Frequency response
1200 - 20000 Hz
recommended crossover frequency
1200 Hz
Voice Coil Carrier
Polymide
Diaphragm material
Titanium
Magnet
Ferrite
Recommended horn
EH2EA
Threaded connector
1 3/8" 18 UNEF ext.
Mounting holes
2
Diameter of fixing holes
1/4-20
Pitch Circle Diameter (bolt on)
76.2 mm
Weight
2,3 kg
