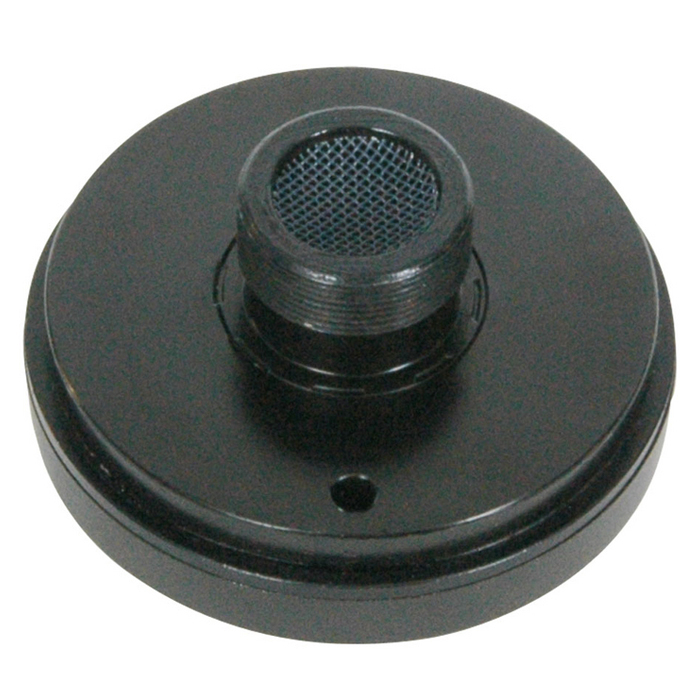

NSD 2005 S A
1" high-frequency Driver with screw thread 50 W 8 Ohms
Item no.: ENSD2005SA
Guarantee: 24 months
EAN: 4049521026416
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
1" high-frequency Driver with screw thread 50 W 8 Ohms
Specifications
Product type
High-frequency Drivers
Nominal Diameter
1 "
Nominal Diameter
25.4 mm
Voice Coil
2 "
Voice Coil
50.8 mm
Overall diameter
98.3 mm
Depth
44.5 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
50 W
Sensitivity (horn 1 W / 1 m)
109
Frequency response
1500 - 20000 Hz
recommended crossover frequency
1500 Hz
Voice Coil Carrier
Polymide
Diaphragm material
Titanium
Magnet
Neodymium
Recommended horn
LH290S
Threaded connector
1 3/8" 18 UNEF ext.
Mounting holes
2
Diameter of fixing holes
1/4-20
Pitch Circle Diameter (bolt on)
76.2 mm
Weight
1,1 kg
