LA-WG14
Tweeter horn 1.4" Waveguide 140° x 15°
Item no.: ELAWG14
Guarantee: 24 months
EAN: 4049521264511
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:

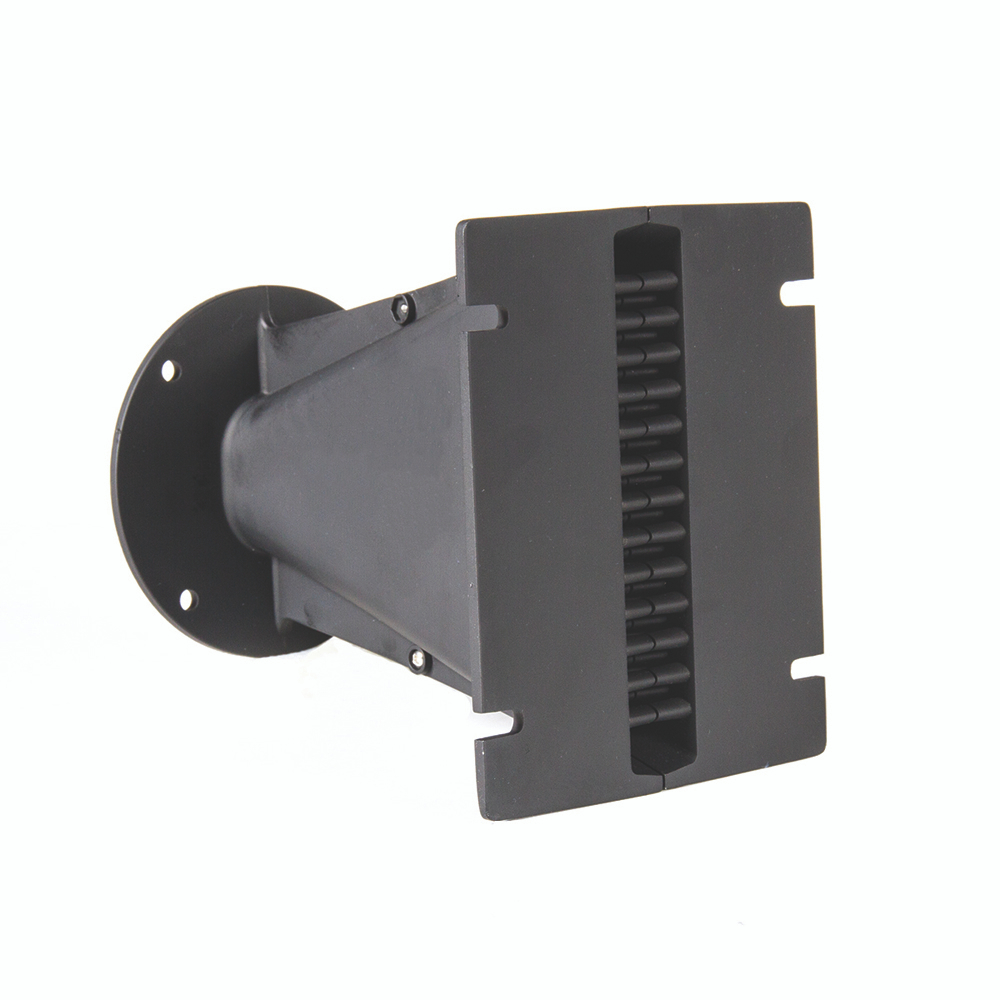

The Eminence LA-WG14 Line Array Waveguide offers wide horizontal high frequency coverage in tight fitting line array systems. Made from lightweight cast aluminum, the LA-WG14 is designed for 1.4" exit bolt-on compression drivers, and features a 140 x 15 degree dispersion. Pair with the Eminence N314T-8 compression driver for the ultimate in smooth, clean high frequency reproduction.
Specifications
Product type
Speaker Construction Accessories
Type
High-frequency Horns
Dispersion (H x V)
140 x 15 °
Nominal Diameter
1.4" "
Nominal Diameter
35.6 mm
Width
131 mm
Height
163 mm
Depth
181 mm
Material
Aluminium
low crossover frequency
1000 Hz
Recommended High-frequency Driver
EN314TA
