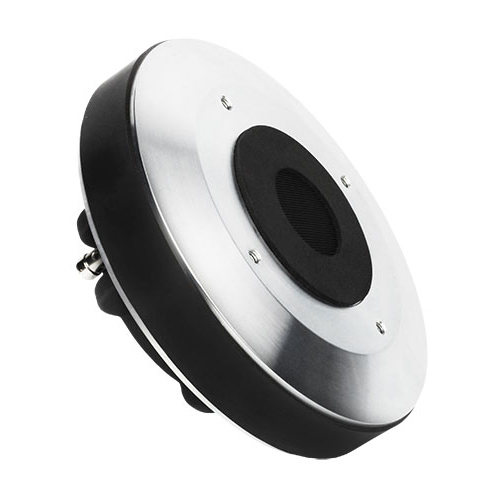

HF 141 A
1.4" Compression Driver 90 W 8 Ohm
Item no.: FPHF141A
Guarantee: 24 months
EAN: 4049521165320
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
1.4" Compression Driver 90 W 8
Specifications
Product type
High-frequency Drivers
Nominal Diameter
1.4 "
Nominal Diameter
35.6 mm
Voice Coil
2.91 "
Voice Coil
74 mm
Overall diameter
170 mm
Pitch Circle Diameter
102 mm
Depth
66 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
90 W
maximum rated load
180 W
Sensitivity (horn 1 W / 1 m)
109
Frequency response
500 - 18000 Hz
recommended crossover frequency
900 Hz
Voice Coil Carrier
Kapton
Diaphragm material
Titanium
Magnet
Ferrite
Mounting holes
4
Diameter of fixing holes
M6
Weight
4,7 kg
