Archive
HF 14 ATA

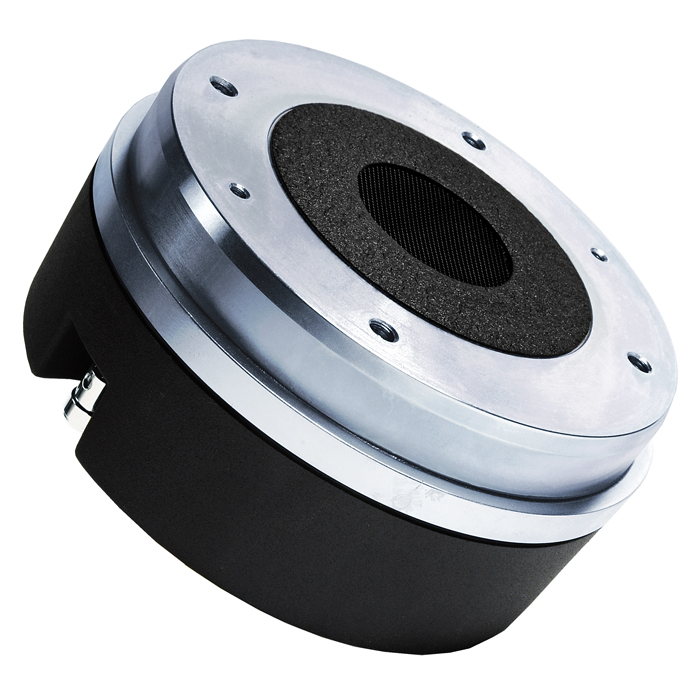

1.4" Compression Driver 90 W 8 Ohms
Item no.: FPHF14ATA
Guarantee: 24 months
EAN: 4049521112775
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
1.4" Compression Driver 90 W 8 Ohms
Specifications
Product type
High-frequency Drivers
Nominal Diameter
1.4 "
Nominal Diameter
35.6 mm
Voice Coil
2.95 "
Voice Coil
75 mm
Overall diameter
130.5 mm
Depth
62 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
90 W
maximum rated load
180 W
Sensitivity (horn 1 W / 1 m)
110
Frequency response
500 - 18000 Hz
recommended crossover frequency
900 Hz
Voice Coil Carrier
Kapton
Diaphragm material
Titanium
Magnet
Neodymium
Weight
3 kg
