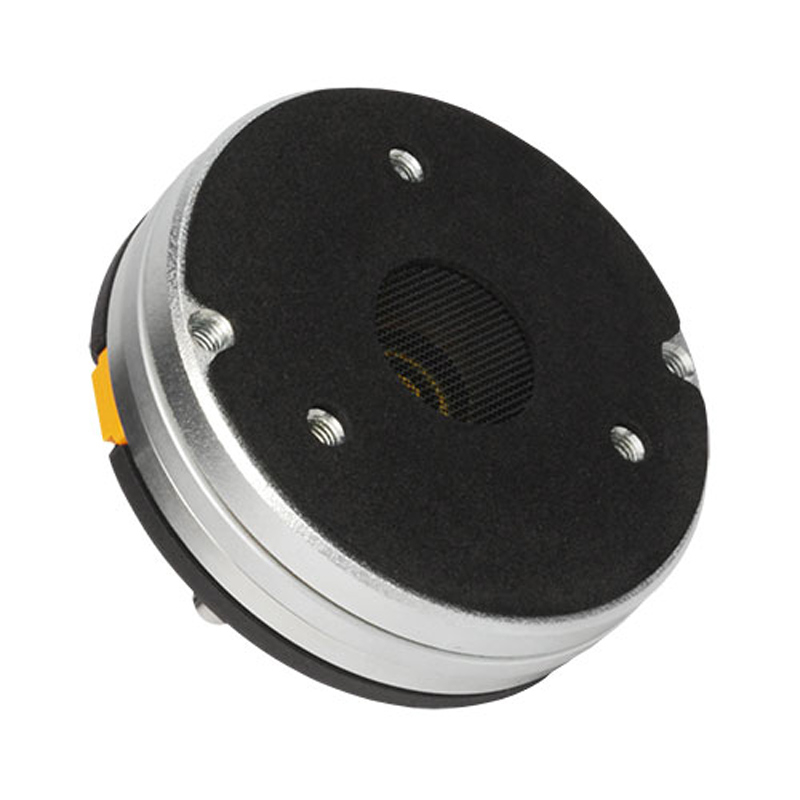

HF 108 A
1" Compression Driver 60 W 8 Ohms
Item no.: FPHF108A
Guarantee: 24 months
EAN: 4049521165337
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
1" Compression Driver 60 W 8 Ohms
Specifications
Product type
High-frequency Drivers
Nominal Diameter
1 "
Nominal Diameter
25.4 mm
Voice Coil
1.73 "
Voice Coil
44 mm
Overall diameter
87 mm
Pitch Circle Diameter
76 mm
Depth
41 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
60 W
maximum rated load
120 W
Sensitivity (horn 1 W / 1 m)
109
Frequency response
100 - 20000 Hz
recommended crossover frequency
1300 Hz
Voice Coil Carrier
Kapton
Diaphragm material
Ketone Polymer
Magnet
Neodymium
Mounting holes
2
Diameter of fixing holes
M5
Weight
0,8 kg
