HF 102 A

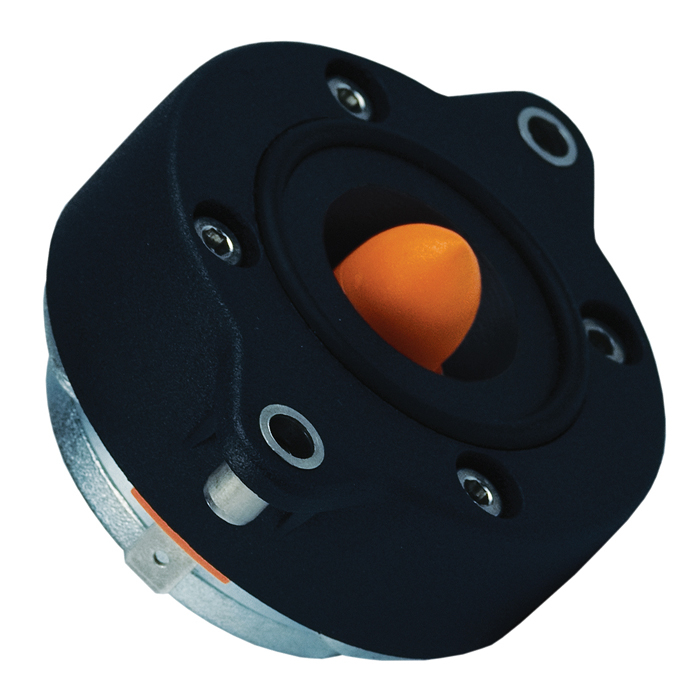

1" Compression Driver 30 W 8 Ohms
Item no.: FPHF102A
Guarantee: 24 months
EAN: 4049521111075
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
1" Compression Driver 30 W 8 Ohms
Specifications
Product type
High-frequency Drivers
Nominal Diameter
1 Inch
Nominal Diameter
25.4 mm
Voice Coil
1.02 Inch
Voice Coil
26 mm
Overall diameter
91 mm
Depth
43
Nominal Impedance
8
Nominal Load Capacity
30 W
maximum rated load
60 W
Sensitivity (horn 1 W / 1 m)
107
Frequency response
1800 Hz - 20000 Hz
recommended crossover frequency
2600 Hz
Voice Coil Carrier
Kapton
Diaphragm material
Ketone Polymer
Magnet
Neodymium
