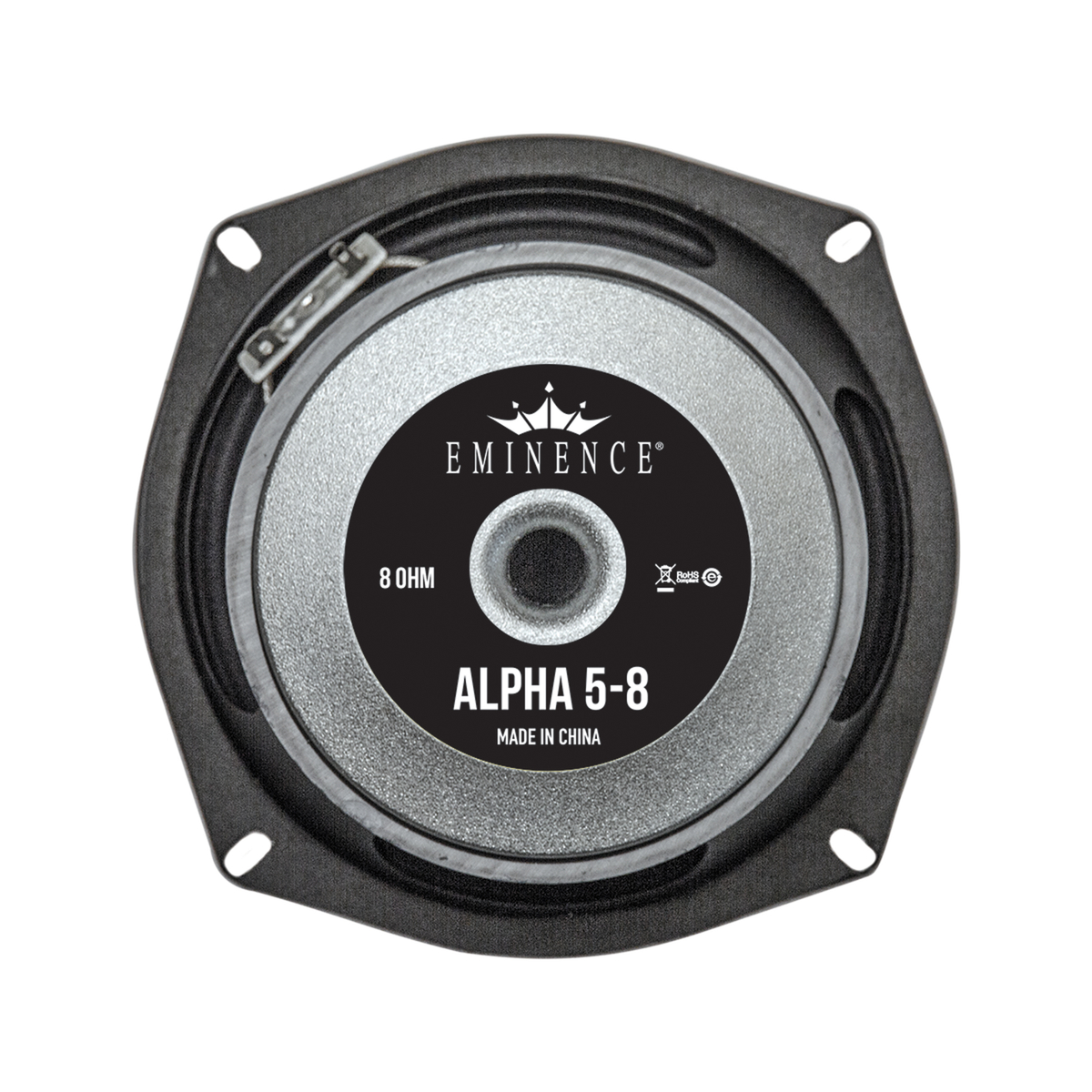

ALPHA 5 A
5" Driver 250 W 8 Ohms
Item no.: EA5A
Guarantee: 24 months
EAN: 4049521300554
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
The Alpha 5 offers unmistakable performance with an emphasis on value. Rated at 250 watts program power, this 5 inch midbass features a water-resistant cone and dust cap, making it an excellent choice for line array or column array applications.
Specifications
Product type
Loudspeaker Chassis
Nominal Diameter
5 "
Nominal Diameter
127 mm
Voice Coil
1.5 "
Voice Coil
38 mm
Overall diameter
149.1 mm
Pitch Circle Diameter
136.9 mm
Cut- out Measurement
121.9 mm
Diameter of fixing holes
5 mm
Depth
73.9 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
125 W
maximum rated load
250 W
Sensitivity (1 W / 1 m)
89.4 dB
Frequency response
87 - 3500 Hz
Voice Coil Material
Aluminium
Magnet
Ferrite
Fs (Resonance Frequency)
87 Hz
Re (DC resistance)
5 Ohm(s)
Qms (mechanical quality)
11.81
Le (inductance of the voice coil)
0.29 mH
Qes (electrical quality)
0.56
Qts (overall quality)
0.54
Vas (equivalent volume)
6.14
Mms (moving mass)
8 g
BL (power factor)
6.22 T/m
Xmax (maximum displacement)
5.9 mm
Cms (elasticity of the suspension)
0.42 mm/N
Sd (membrane area)
102.6 cm²
Weight
1,41 kg
