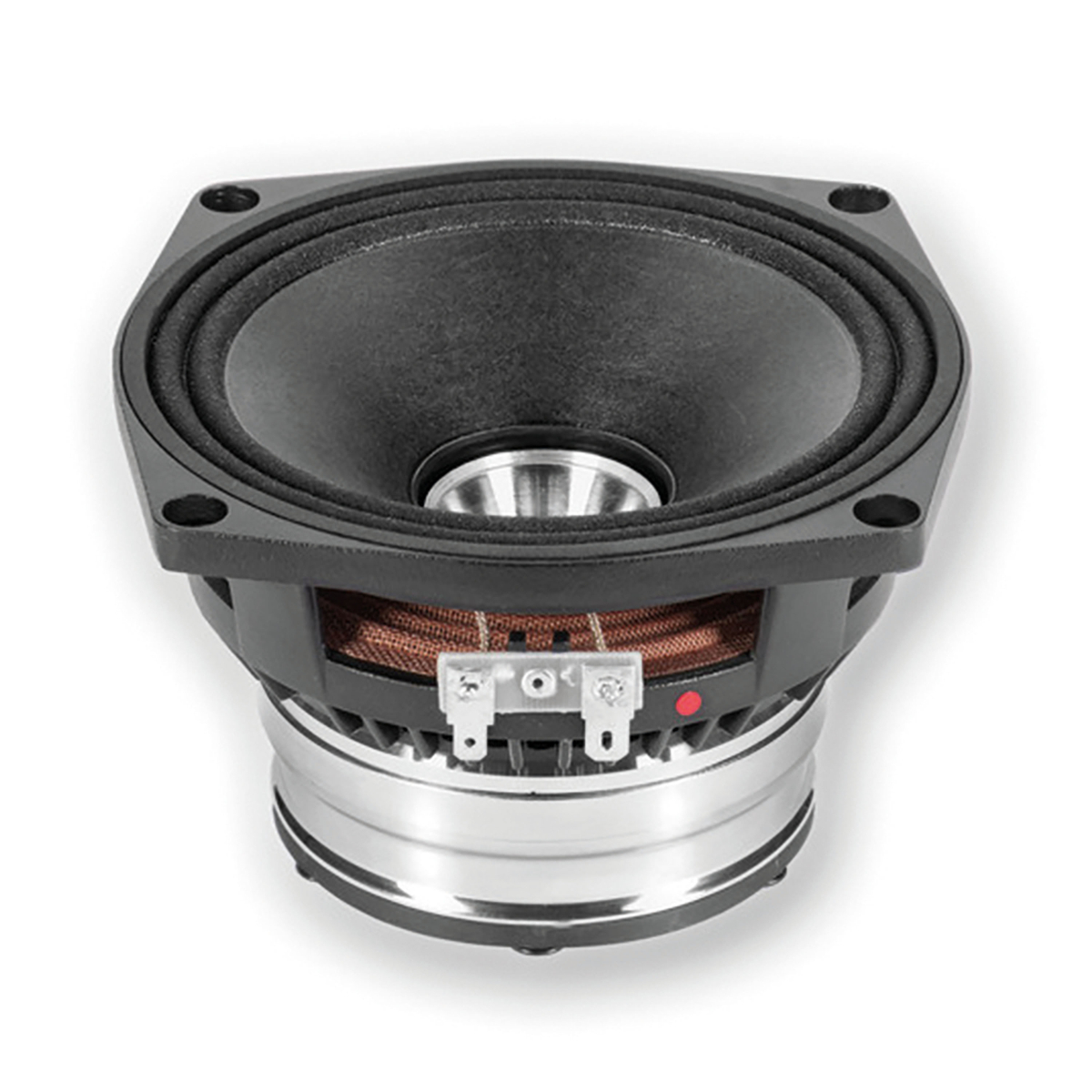

5CN162LH
5” Neodymium Coaxial Transducer
Item no.: BMS5CN162LH
Guarantee: 24 months
EAN: 4049521310416
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
- 90 dB sensitivity 1W/1m
- 130W + 80W Power handling
- Single point source providing coherent wave front
- 90° conical dispersion
- Optimal for compact 2-way systems
Specifications
Product type
Loudspeaker Chassis
Type
PA
Loudspeaker dimensions
5 Inch
Loudspeaker dimensions (mm)
130 mm
Overall diameter
128 mm
Pitch Circle Diameter
139 mm
Cut- out Measurement
117 mm
Mounting holes
4
Diameter of fixing holes
5.3 mm
Total depth
104 mm
Nominal impedance
8 Ω
RMS
130 W
Sensitivity (1 W / 1 m)
90 dB
Frequency response
80 Hz - 20000 Hz
Woofer voice coil (inch)
1.5 Inch
Woofer voice coil (mm)
38 mm
Voice Coil Material Woofer
copper
Woofer magnet
Neodymium
Magnetic gap depth Woofer
5 mm
Fs (Resonance Frequency)
100 Hz
Re (DC resistance)
6.85 Ω
Qms (mechanical quality)
3.1
Le (inductance of the voice coil)
0.39 MH
Qes (electrical quality)
0.41
Qts (overall quality)
0.36
Vas (equivalent volume)
2.1 l
Mms (moving mass)
9 g
BL (power factor)
10 T/M
Xmax (maximum displacement)
5 mm
Cms (elasticity of the suspension)
0.27 MM/N
Sd (membrane area)
75 CM²
HF driver voice coil
1.5 Inch
HF driver voice coil (mm)
38 mm
Nominal Impedance HF driver
8 Ω
Nominal Load HF driver
80 W
Maximum Load HF driver
130 W
Sensitivity HF driver (1 W / 1 m)
110 dB
Frequency range HF driver
1000 Hz - 20000 Hz
recommended crossover frequency HF driver
1300 Hz
Voice Coil Carrier HF driver
Kapton
Diaphragm material HF driver
Polyester
HF driver magnet
Neodymium
Dispersion (H x V)
90 °
