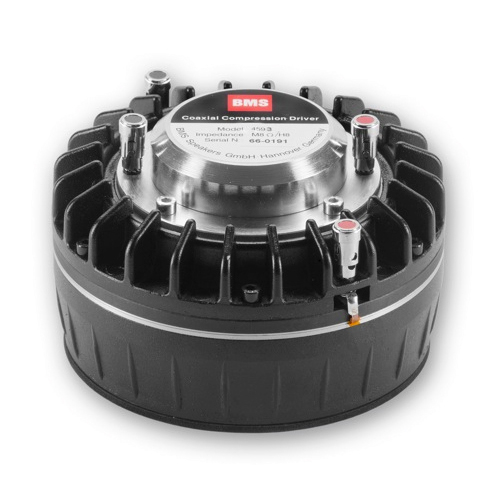

4593 NDL
1.4" Coaxial Neodymium Driver 150 W + 80 W 8 Ohms
Item no.: BMS4593NDL
Guarantee: 24 months
EAN: 4049521121098
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
1.4" Coaxial Neodymium Driver 150 W + 80 W 8 Ohms
Specifications
Product type
High-frequency Drivers
Nominal Diameter
1.4 Inch
Nominal Diameter
36 mm
Overall diameter
132 (± 3) mm
Depth
85 mm
Sensitivity (horn 1 W / 1 m)
118
Mounting holes
4
Diameter of fixing holes
M6
Pitch Circle Diameter
101.6 mm
passive crossover
No
Midrange voice coil
3.5 Inch
Midrange voice coil
89.9 mm
Nominal Impedance Midrange
8 Ω
Nominal Load Midrange
150 W
Maximum Load Midrange
1.000 W
Frequency range Midrange
300 Hz - 7.000 Hz
recommended crossover frequency Midrange
300 Hz
Voice Coil Carrier Midrange
Kapton
Diaphragm material Midrange
Polyester
Midrange magnet
Neodymium
HF driver voice coil
1.75 Inch
HF driver voice coil (mm)
44.4 mm
Nominal Impedance HF driver
8 Ω
Nominal Load HF driver
80 W
Maximum Load HF driver
320 W
Frequency range HF driver
6.000 Hz - 22,000 Hz
recommended crossover frequency HF driver
6.300 Hz
Voice Coil Carrier HF driver
Kapton
Diaphragm material HF driver
Polyester
HF driver magnet
Neodymium
