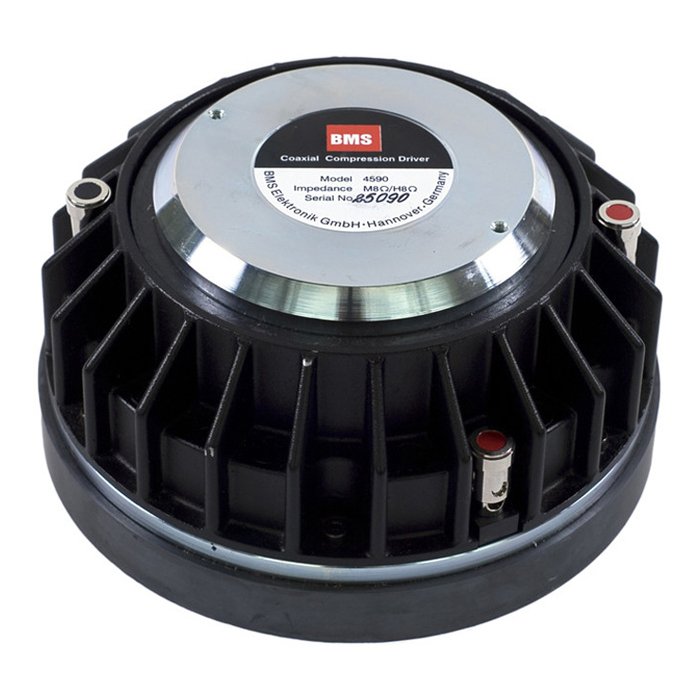

4590 H
2" Coaxial Driver 150 W + 80 W 16 Ohms
Item no.: BMS4590H
Guarantee: 24 months
EAN: 4049521023347
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
2" Coaxial Driver 150 W + 80 W 16 Ohm
Specifications
Product type
High-frequency Drivers
Nominal Diameter
2 Inch
Nominal Diameter
50.8 mm
Overall diameter
182 (± 3) mm
Depth
129 mm
Sensitivity (horn 1 W / 1 m)
118
Recommended horn
BMS2244, BMS2230, BMS2236, BMS2250
Mounting holes
4
Diameter of fixing holes
M6
Pitch Circle Diameter
101.6 mm
passive crossover
No
Midrange voice coil
3.5 Inch
Midrange voice coil
88.9 mm
Nominal Impedance Midrange
16 Ω
Nominal Load Midrange
150 W
Maximum Load Midrange
1.000 W
Frequency range Midrange
300 Hz - 7.000 Hz
recommended crossover frequency Midrange
300 Hz
Voice Coil Carrier Midrange
Kapton
Diaphragm material Midrange
Polyester
Midrange magnet
ceramic
HF driver voice coil
1.75 Inch
HF driver voice coil (mm)
44.4 mm
Nominal Impedance HF driver
16 Ω
Nominal Load HF driver
80 W
Maximum Load HF driver
450 W
Frequency range HF driver
6.000 Hz - 22,000 Hz
recommended crossover frequency HF driver
6.300 Hz
Voice Coil Carrier HF driver
Kapton
Diaphragm material HF driver
Polyester
HF driver magnet
ceramic
