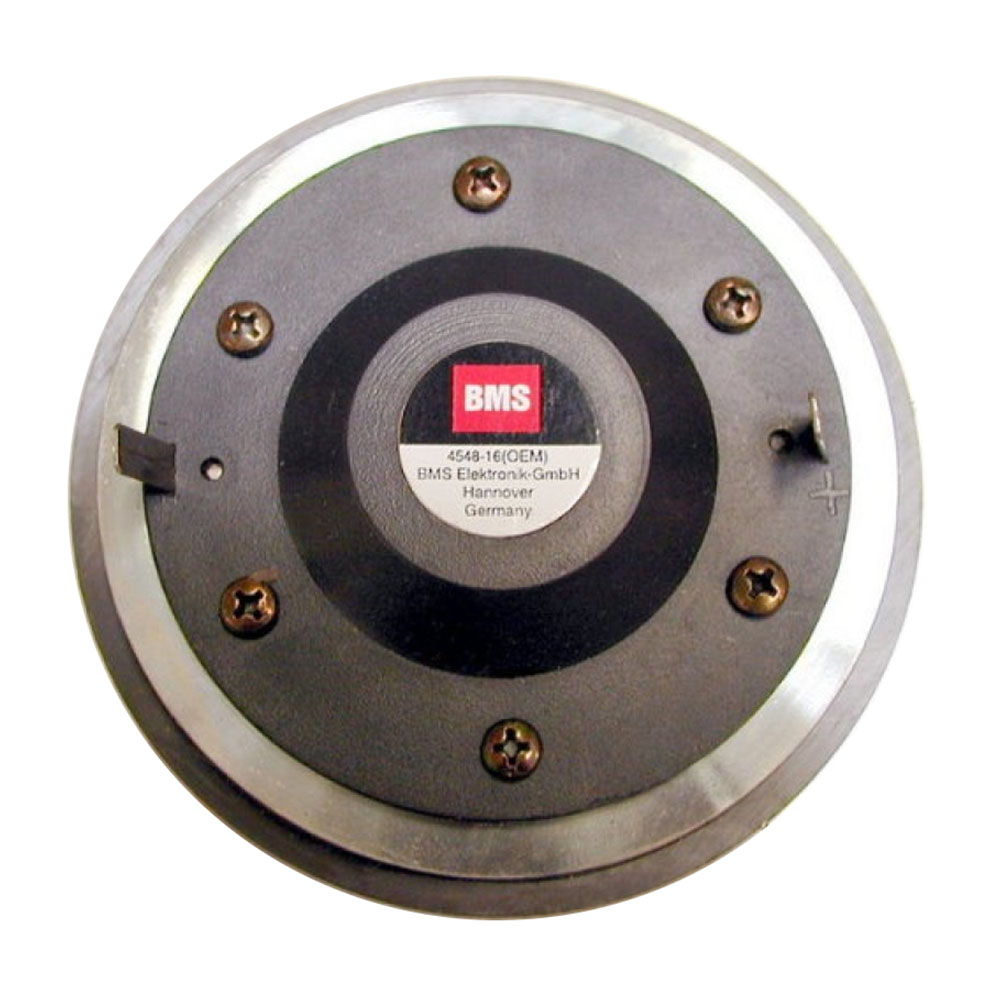

4548 L
1" High-Frequency Driver 45 W 8 Ohms OEM-Type
Item no.: BMS4548L
Guarantee: 24 months
EAN: 4049521023224
Sliding scale: 1
Unit: Piece
Packaging unit: 6
Item highlights:
1" high-frequency Driver 45 W 8 Ohm OEM-Type
Specifications
Product type
High-frequency Drivers
Nominal Diameter
1 "
Nominal Diameter
25.4 mm
Voice Coil
1.75 "
Voice Coil
44.4 mm
Overall diameter
123 mm
Pitch Circle Diameter
57 mm
Depth
50 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
80 W
maximum rated load
450 W
Sensitivity (horn 1 W / 1 m)
113
Frequency response
500 - 20000 Hz
recommended crossover frequency
800 Hz
Voice Coil Carrier
Kapton
Diaphragm material
Polyester
Magnet
Ferrite
Recommended horn
BMS2119, BMS2193, FPSTH100
Mounting holes
3
Diameter of fixing holes
M6
Pitch Circle Diameter (bolt on)
57 mm
Weight
2,04 kg
