4528

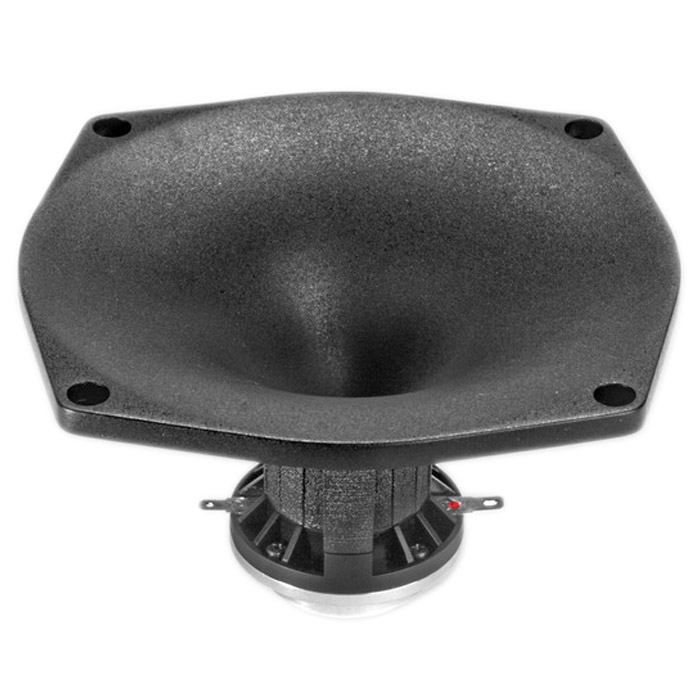

1" Neodymium High-Frequency Driver 25 W 8 Ohms
Item no.: BMS4528NDL
Guarantee: 24 months
EAN: 4049521101519
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
1" Neodymium high-frequency Driver 25 W 8 Ohm
Specifications
Product type
High-frequency Drivers
Nominal Diameter
1 Inch
Nominal Diameter
16.5 mm
Voice Coil
1 Inch
Voice Coil
25.4 mm
Overall diameter
187 x 162 mm
Pitch Circle Diameter
172 mm
Depth
101
Nominal Impedance
8
Nominal Load Capacity
25 W
maximum rated load
200 W
Sensitivity (horn 1 W / 1 m)
113
Frequency response
1200 Hz - 30000 Hz
recommended crossover frequency
1800 Hz
Voice Coil Carrier
Kapton
Diaphragm material
Polyester
Magnet
Neodymium
Mounting holes
4
Diameter of fixing holes
5.3 mm
Pitch Circle Diameter (bolt on)
172 mm
