4505 L

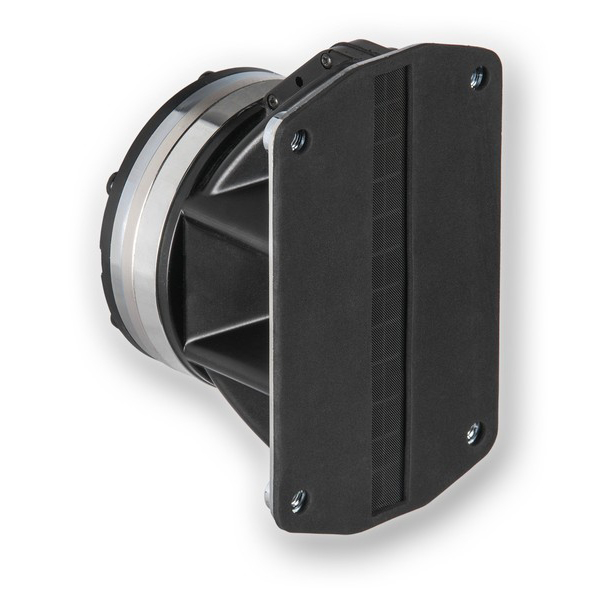

5" Neodymium Planar Wave Driver
Item no.: BMS4505L
Guarantee: 24 months
EAN: 4049521170546
Sliding scale: 6
Unit: Piece
Packaging unit: 6
Item highlights:
- Unique Planar Wave Design
- Neodymium Magnet Assembly
- Perfect acoustical coupling of individual units to create virtually continuous line source
- 113 dB sensitivity 1 W / 1 m
- 1 kHz Crossover
- Extended high frequency response up to 20 kHz
- 8 or 16 Ohm
Specifications
Product type
High-frequency Drivers
Type
PA
Nominal Diameter
5 Inch
Nominal Diameter
127 mm
Voice Coil
1 Inch
Voice Coil
13.2 mm
Overall diameter
132 mm
Nominal Impedance
8
Nominal Load Capacity
80 W
Frequency response
500 Hz - 20000 Hz
recommended crossover frequency
1000 Hz
Voice Coil Carrier
Kapton
Diaphragm material
Polyester
Magnet
Neodymium
Description
4505 L
The advanced design of the 4505ND planar wave driver allows perfect acoustical coupling of individual units to create a virtually continuous line source. The 4505ND contains a high energy neodymium magnet system and a unique annular ring diaphragm, providing a frequency response up to 20 kHz.
