400200068

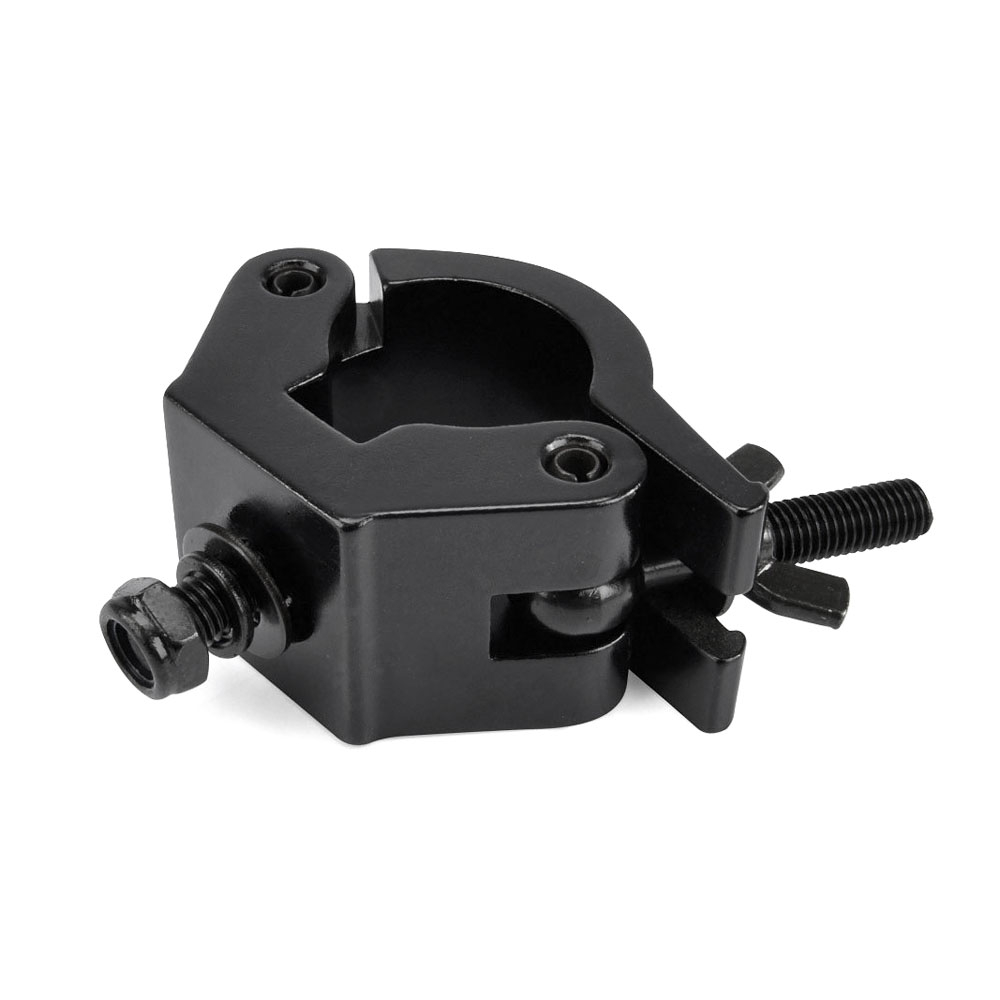

Halfcoupler Heavy Black max. Load 750 kg (48 - 51 mm)
A new model exists for this item:
RIGGATEC
Half Coupler Clamp | black | wide | WLL 750kg
RIG400200074
Item no.: RIG400200068
Guarantee: 24 months
EAN: 4250595827506
Sliding scale: 1
Unit: Piece
Packaging unit: 25
Item highlights:
TUV approved (certificate can be sent on request)
incl. device screw M12 black, retaining ring, grommet and wing nut
Lock screw M8 zinc coated with grommet and wing nut
Specifications
Product type
Truss Accessories
Type
Half Coupler
Suitable for tube diameter
48 - 51 mm
Tensile load
750 kg
Shear load max.
100 kg
Material
Aluminium
Clamp width
50 mm
Length
120 mm
Width
50 mm
Height
90 mm
Weight
0,636 kg
