A new model exists for this item:
Neutrik
NLT8MPXX
NLT8MPXX
Item no.: NLT8MP
Guarantee: 12 months
EAN: 4049521363351
Sliding scale: 1
Unit: Piece
Packaging unit: 40
Item highlights:

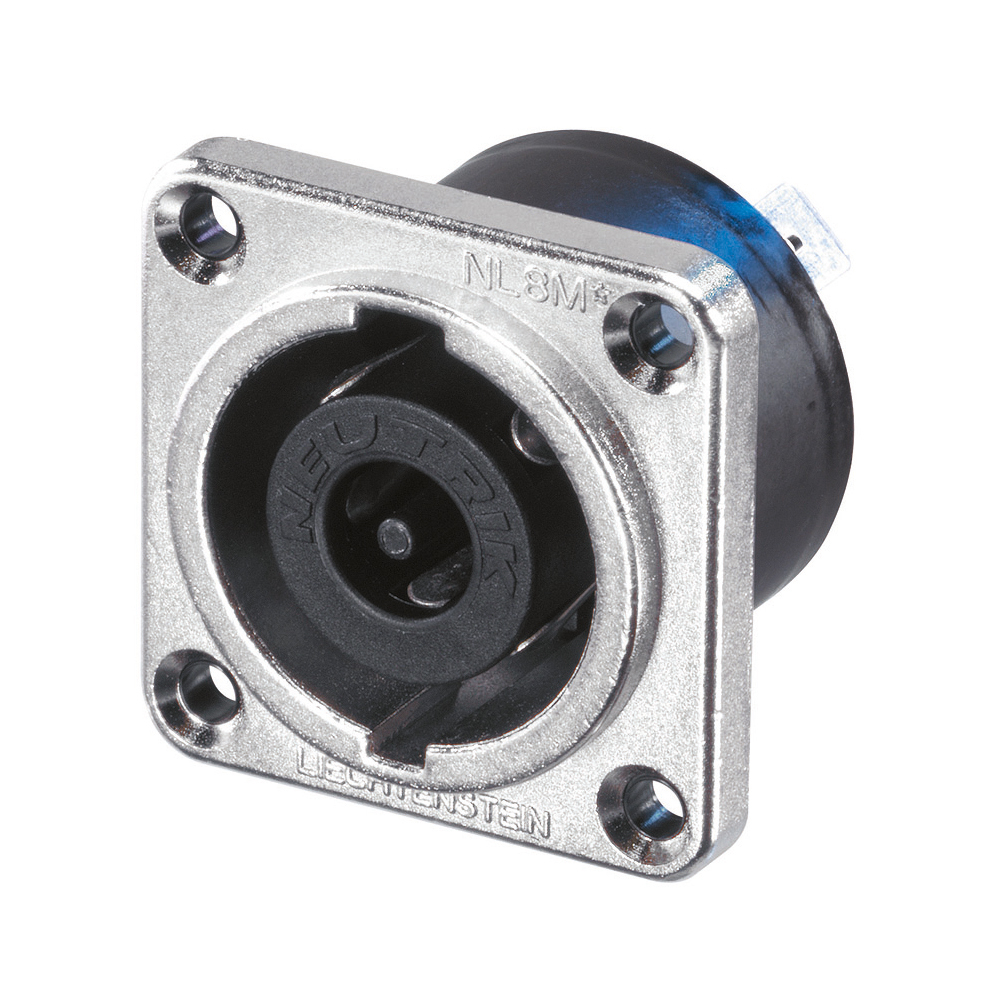

8-pole male chassis connector, Nickel housing, solder or ¼" flat tabs
The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.
Features & Benefits- Extremely robust metal housing designed for harsh and demanding environment
- Ideal product for touring applications and harsh environments
- Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
- Uses precise “Quick Lock” system
- Mates with all currently available speakON products
Specifications
Product type
Plugs and Connectors
Type
Loudspeaker Connectors
Poles
8
Gender
male
Contacts
copper
Connection type
Flat tabs / solder contacts
Housing
die-cast zinc
Width
38 mm
Height
38 mm
Depth
36.9 mm
Weight
0,027 kg
