A new model exists for this item:
Neutrik
NLT4FXX
NLT4FXX
Item no.: NLT4FX
Guarantee: 12 months
EAN: 7613187003868
Sliding scale: 1
Unit: Piece
Packaging unit: 50
Item highlights:

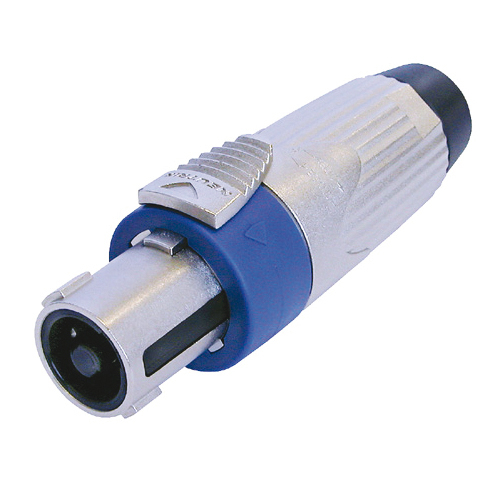

4 pole female cable connector, nickel housing, chuck type strain relief
The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.
- Current rating 40 A continuous, 50 A audio with 50% duty cycle
- Robust and durable all metal housing
- Sealing ring provides weatherproof IP54 rating
- Reinforced metal quick lock system for ease and precise locking
- Extra large solder contacts for up to 6mm² (AWG10) wires
- Mate with all available speakON products
Specifications
Product type
Plugs and Connectors
Type
Loudspeaker Connectors
Poles
4
Gender
female
Contacts
brass
Connection type
solder contacts
Housing
die-cast zinc
Width
26 mm
Height
26 mm
Depth
85 mm - 90 mm
