A new model exists for this item:
Neutrik
NL8MPRXX
NL8MPRXX
Item no.: NL8MPR
Guarantee: 12 months
EAN: 4049521363337
Sliding scale: 1
Unit: Piece
Packaging unit: 40
Item highlights:

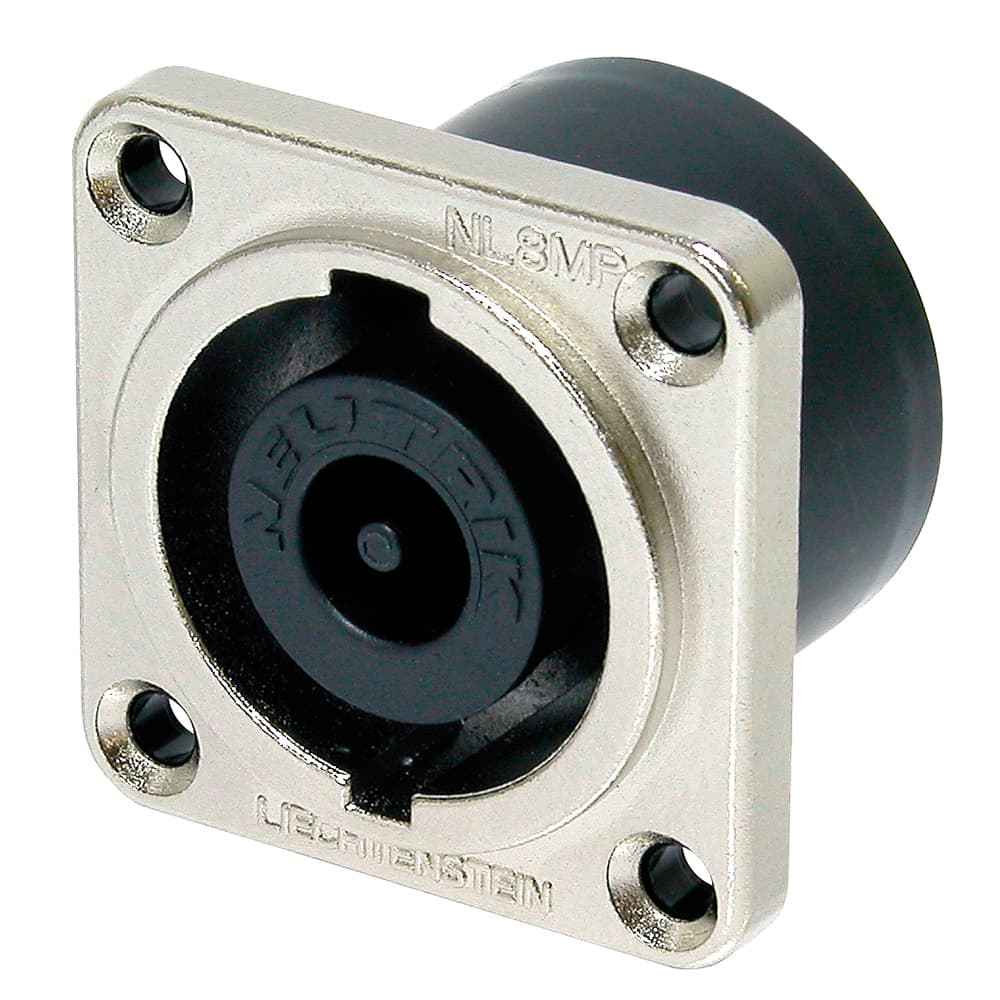

8 pole chassis connector, nickel metal square G-size flange, countersunk thru holes, 3/16" flat tabs
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Features & Benefits- C urrent rating 30 A rms
- Glass reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal flange
- Airtight design - optimized for speaker applications
Specifications
Product type
Plugs and Connectors
Type
Loudspeaker Connectors
Poles
8
Gender
male
Contacts
Bronze
Connection type
Flat tabs
Housing
polyamide
Width
38 mm
Height
38 mm
Depth
33 mm
Weight
0,04 kg
