Item no.: NL8FC
Guarantee: 12 months
EAN: 7613187003837
Sliding scale: 1
Unit: Piece
Packaging unit: 25
Item highlights:

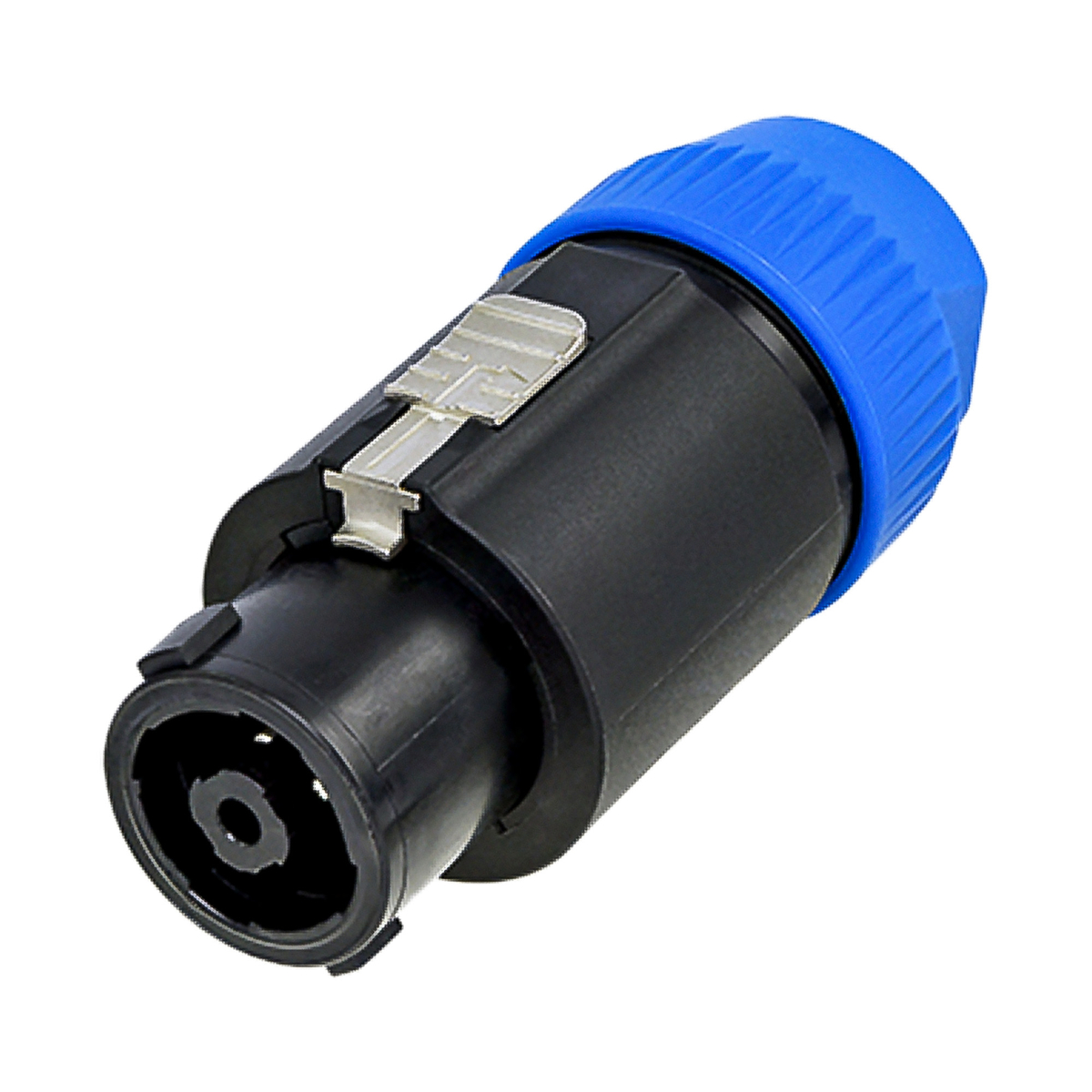

8 pole cable connector, latch lock, chuck type strain relief for cables 8 - 20 mm diameter, 30 A continuous per contact
The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
Features & Benefits- Current rating 30 A rms continuous
- Reliable and robust, easy and fast to assemble
- Contacts are touch proof and meet all safety requirements (IEC, UL, CSA)
- Accurate and dependable twist lock latching system "Quick Lock"
- High impact material for insert and housing, long-lasting and dependable
- Chuck type strain relief system for secure clamping of cable
Specifications
Product type
Plugs and Connectors
Type
Loudspeaker Connectors
Poles
8
Gender
female
Cable diameter
8 - 20 mm
Contacts
nickel plated
Connection type
screws/solder contacts
Color
blue
Housing
polyamide
Strain relief
polyacetal
Length
85 mm
Diameter
36.2 mm
Weight
0,0667 kg
Downloads
Name | Type | Format | File size | ||
|---|---|---|---|---|---|
| NL8FC User Manual | User Manual | 342.87 KB | |||
| NL8FC Quick Start Guide | Quick Start Guide | 3.2 MB | |||
| NL8FC 2D Drawing | 2D Drawing | 75.25 KB | |||
| Product Images | Images & Artwork | .zip | - |
