Item no.: NL4MPXXSB
Guarantee: 12 months
EAN: 7613187012860
Sliding scale: 1
Unit: Piece
Packaging unit: 500
Versions:
Item highlights:
- Current rating 25 A rms
- Glass reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
- Airtight design - optimized for speaker applications
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
- IEC 61984 certified IEC 62368/-1 compliant
Specifications
Product type
Plugs and Connectors
Type
Loudspeaker Connectors
Poles
4
Gender
male
Contacts
Bronze
Connection type
Flat tabs
Housing
polyamide
Width
26 mm
Height
31 mm
Depth
35 mm
Weight
0,012 kg
Additional information
in D-type housing
Description

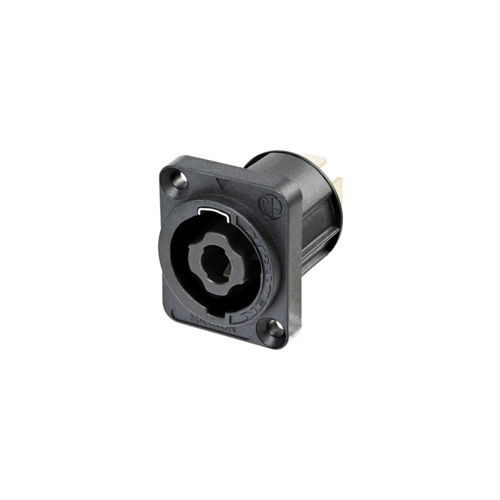

NL4MPXX
4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Downloads
Name | Type | Format | File size | ||
|---|---|---|---|---|---|
| NL4MPXXSB Quick Start Guide | Quick Start Guide | 253.84 KB | |||
| NL4MPXXSB 2D Drawing | 2D Drawing | 376.74 KB | |||
| Product Images | Images & Artwork | .zip | - |
