Item no.: NL4MPRXXSB
Guarantee: 12 months
EAN: 7613187012853
Sliding scale: 1
Unit: Piece
Packaging unit: 40
Item highlights:
- IEC 61984 certified > IEC 62368-1 compliant
- Precise keyway for secure mating
- Metal insert in locking area
- Glass reinforced V-0 materials make it extremely robust and dependable
- Accurate twist lock latching system
- Airtight design - optimized for speaker applications
Specifications
Product type
Plugs and Connectors
Type
Loudspeaker Connectors
Poles
4
Gender
male
Contacts
copper
Housing
polyamide
Weight
0,0161 kg
Description
NL4MPRXXSB
This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

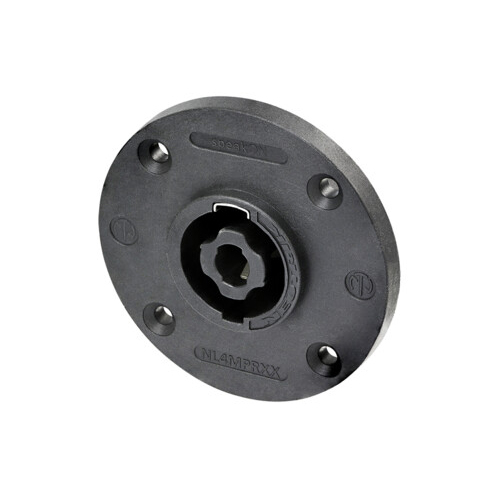

4 pole chassis connector, black round G-size flange, countersunk thru holes, 3/16" flat tabs.
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Downloads
Name | Type | Format | File size | ||
|---|---|---|---|---|---|
| NL4MPRXXSB Quick Start Guide | Quick Start Guide | 213.52 KB | |||
| NL4MPRXXSB 2D Drawing | 2D Drawing | 168.91 KB | |||
| Product Images | Images & Artwork | .zip | - |
