Item no.: NL4MPST
Guarantee: 12 months
EAN: 4049521363313
Sliding scale: 1
Unit: Piece
Packaging unit: 100
Versions:
Item highlights:
- Current rating 30 A rms
- Glass reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
Specifications
Product type
Plugs and Connectors
Type
Speakon and Loudspeaker Connectors
Poles
4
Gender
male
Contacts
Bronze
Connection type
Screw terminals
Housing
polyamide
Width
26 mm
Height
31 mm
Depth
36.15 mm
Weight
0,018 kg
Description

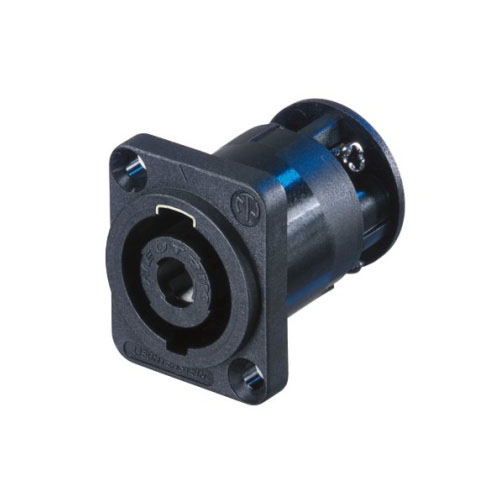

NL4MP-ST
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Downloads
Name | Type | Format | File size | ||
|---|---|---|---|---|---|
| NL4MPST Quick Start Guide | Quick Start Guide | 531.69 KB | |||
| NL4MPST 2D Drawing | 2D Drawing | 48.91 KB | |||
| Product Images | Images & Artwork | .zip | - |
Nothing there?
You can find more downloads in our download centre.
