Item no.: NAC3MPXXA
Guarantee: 12 months
EAN: 7613187012839
Sliding scale: 1
Unit: Piece
Packaging unit: 100
Item highlights:
- Lockable single-phase mains plug-in device
- 3 contacts for phase, neutral and leading earth contact
- Quick and easy twist lock. Power-In (blue) and Power-Out (grey) version with different keying to prevent incorrect insertion
- IEC 62368-1 compliant
- Certified according to IEC 60320-1 & UL 60320-1
- Certified according to UL-1977 & CAN/CSA-C22.2 No. 182.3
- Extremely robust and reliable
- UL94 V-0
Specifications
Product type
Plugs and Connectors
Type
Power Connectors
Poles
2
Gender
female
Colour marker
blue
Contacts
silver plated
Housing
polyamide
Width
26 mm
Height
31 mm
Depth
37 mm
Weight
0,0122 kg
Description

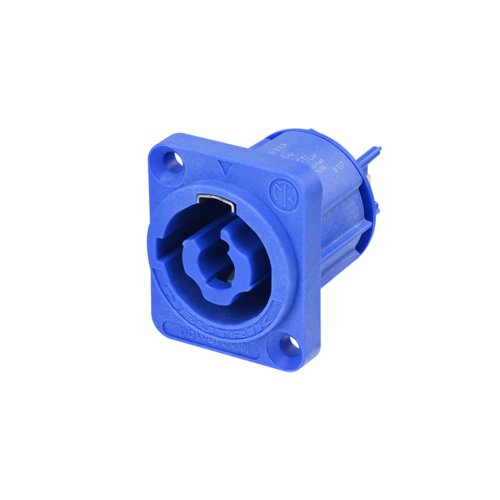

NAC3MPXXA
Conforms to IEC 62368-1 equipment standard through certification according to IEC 60320-1.
Built-in plug, power-in, blue; 3/16'' spade terminals.
Replaces IEC connectors when a particularly robust connection with locking is required to ensure a secure supply.
NAC3MPXXA is a plug-in device that may be plugged in and unplugged under load and voltage.
