Neutrik

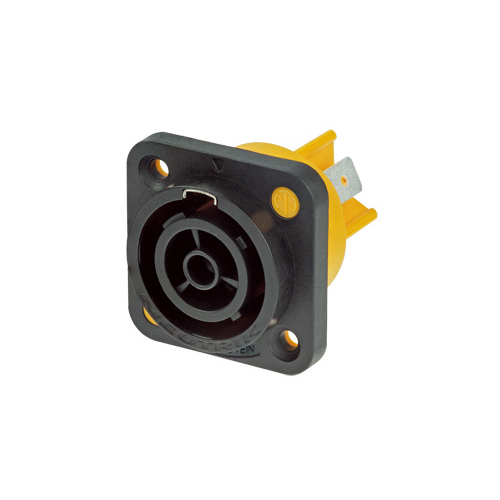

NAC3FPX-TOP
NAC3FPX-TOP
Item no.: NAC3FPX
Guarantee: 12 months
EAN: 4049521361906
Sliding scale: 1
Unit: Piece
Packaging unit: 100
Item highlights:
Appliance outlet connector, 1/4'' flat tab terminals
The powerCON TRUE1 is a locking 16/20 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features & Benefits- True mains connector with breaking capacity (CBC)
- Lockable 16 A single phase connector (USA: 20 A)
- Easy and reliable twist lock system
- Extremely robust and reliable
- ENEC certified according to IEC 60320
- UL recognized components
- IP65 – water resistant when mated with ready-made cord sets
Specifications
Product type
Plugs and Connectors
Type
Other Plugs and Connectors
Connection type
Flat tabs
Width
35.4 mm
Height
35.4 mm
Depth
43 mm
Weight
0,019 kg
