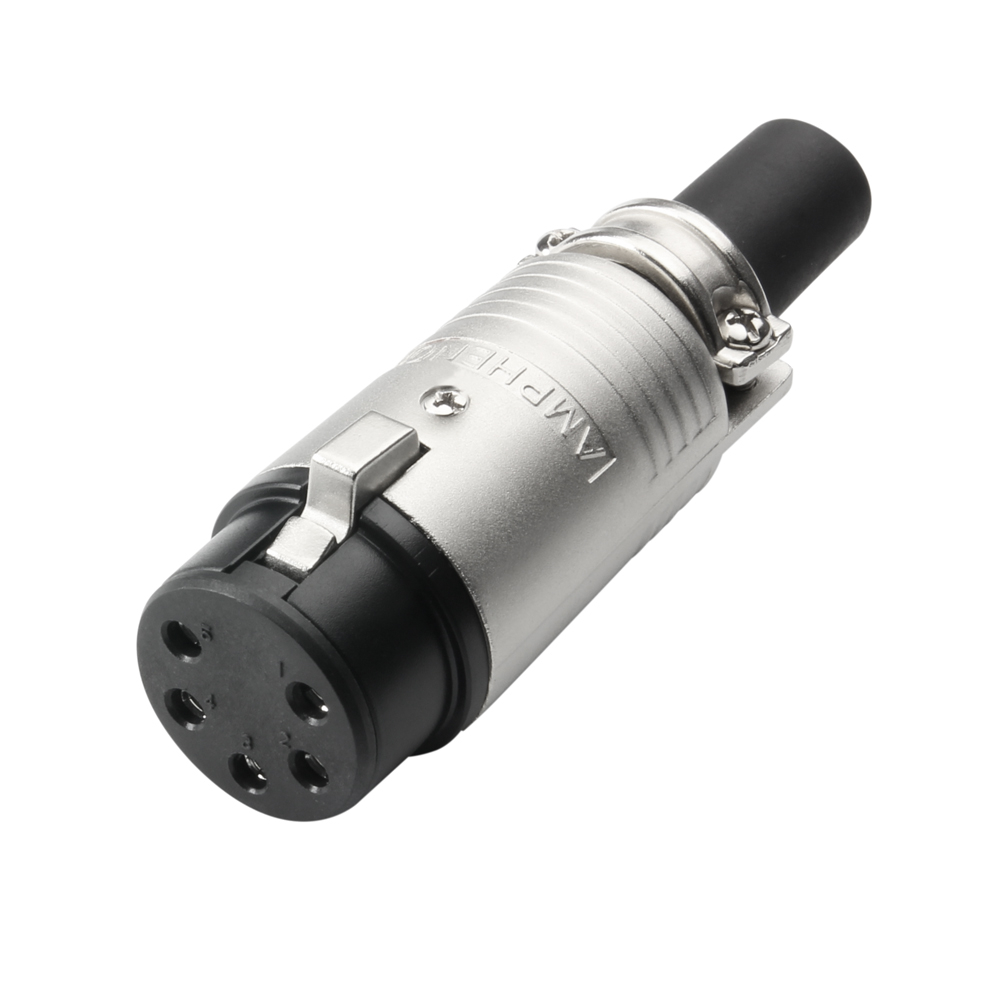

AEP 511P
Speaker Plug 5-pole female
Item no.: AEP511P
EAN: 4049521020841
Sliding scale: 100
Unit: Piece
Packaging unit: 10
Series:EP
Item highlights:
The EP Series incorporates a rugged zinc diecast shell to give it maximum durability when used in demanding situations. Five different contact configurations are available. The EP cable connector cable flex relief design minimises cable bend stress at point of entry into the connector housing. Two different cable relief sizes are supplied with each connector. The cable Clamp is capable of supporting cables from 9mm (0.35") to 16mm (0.63") in diameter.
Specifications
Product type
Plugs and Connectors
Type
Loudspeaker Connectors
Poles
5
Gender
female
Contacts
galvanized
Connection type
solder contacts
Housing
die-cast zinc
Width
28.8 mm
Height
28.8 mm
Depth
88 mm
