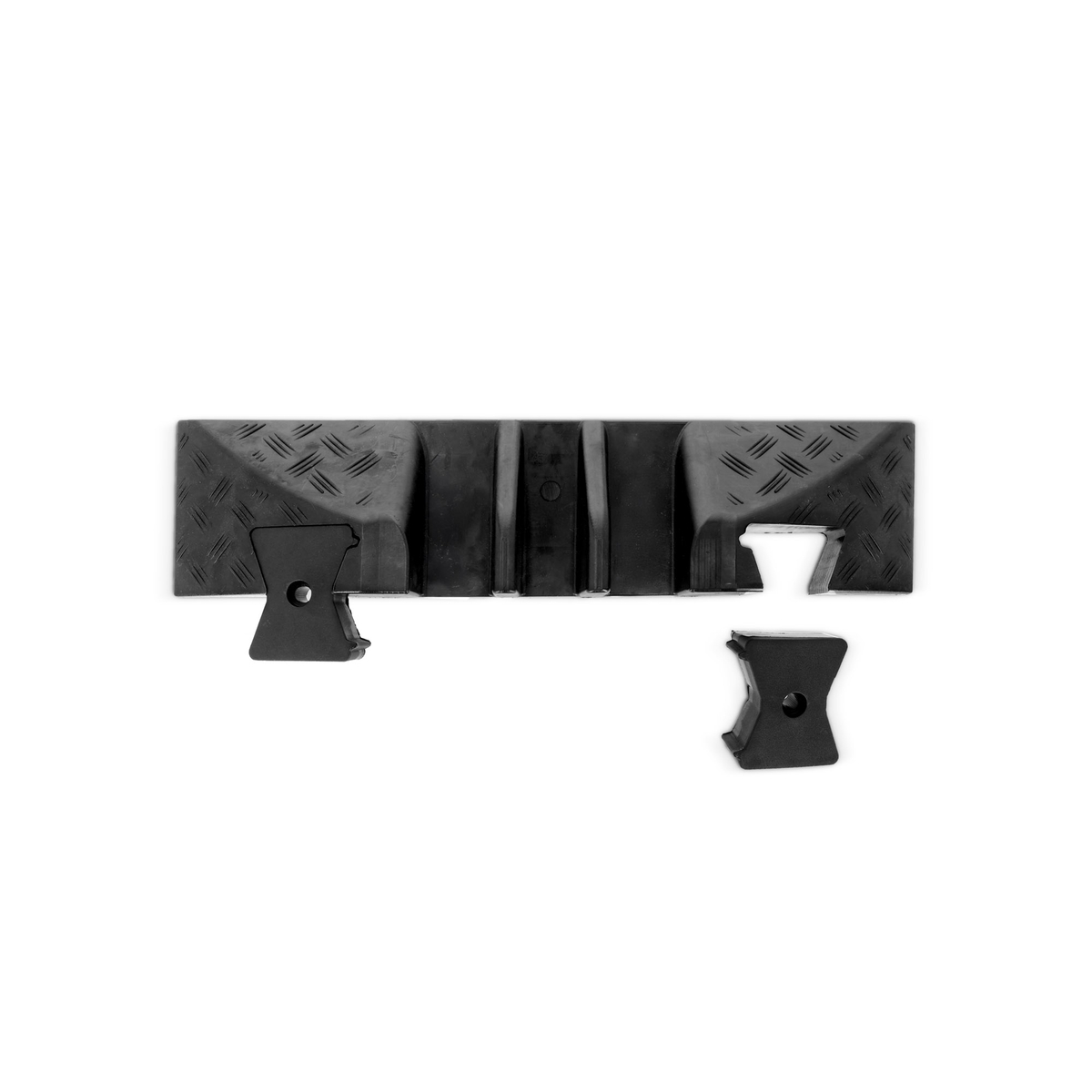

3 End Ramp
Cable protector 3 channels | end piece | with connector | heavy-duty version | height 7.5 cm
Item no.: 85008
Guarantee: 60 months
EAN: 4049521015304
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:3
Item highlights:
End ramp for cable outlet reduces the risk of tripping.
Specifications
Material
TPU (Thermoplastic polyurethane)
Surface structure
Ribbed
Colour
Black
Maximum load (on 25 x 30 cm)
5 t
Load per axle
10 t
Max. Passing speed
7 km/h
Chemical resistance
Petrol, Solvents (short-term contact), Oil
Hardness range (±4 Shore A)
88 Shore A
Shape
Round
Quantity
3
Cable ducts size (W x H)
45 mm x 50 mm / 52 mm x 49 mm
Duct length (effective length)
1,000 mm
Meets TSCA
Yes
Meets CP65
Yes
Fire protection class per DIN 4102-1
B2
Fire protection class per EN 13501-1
E
Inflammability (UL 94)
V-2, HB
Ambient temperature
-30 - 60 °C
Length
145 mm
Width
607 mm
Height
75 mm
Weight
2.45 kg
Certifications
Germany: TÜV Süd
