Item no.: K4IRR0015FLM
Guarantee: 24 months
EAN: 4049521431760
Sliding scale: 1
Unit: Piece
Packaging unit: 1000
Series:4 Star
Versions:
Item highlights:
- Professional pedalboard patch cable from our 4 STAR SERIES
- With extra flat jack TS angle plugs with gold-plated contact
- Extremely flat cable for minimal space consumption on the pedalboard
- Double shielding prevents external interference
- Discoloration-free signal transmission over the entire frequency range
Specifications
Cable length
0.15 m
Cable jacket
PVC (Polyvinyl chloride)
Cable diameter
16 mm
Cable colour
Black
Connector type plug 1
6.3 mm Jack TS angled
Model name plug 1
Adam Hall
Contact material plug 1
Gold plated
Connector type plug 2
6.3 mm Jack TS angled
Model name plug 2
Adam Hall
Contact material plug 2
Gold plated
Conductor material
OFC (Oxygen-free copper)
Conductor cross-section
1 x 0,16 mm²
Ambient temperature
-20 - 70 °C
Weight
18 g
Description

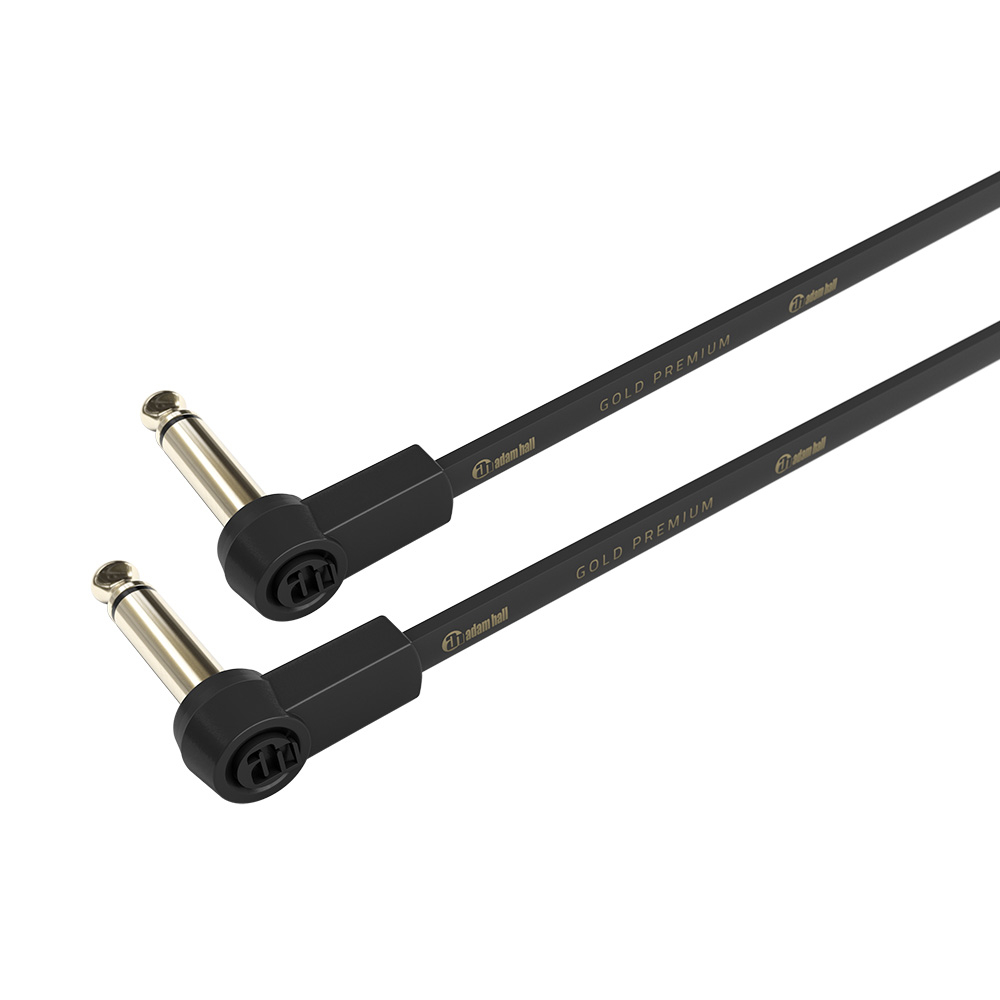

4 STAR IRR 0015 FLM
This patch cable, available in different versions, is ideal for space-saving connection of effects on the pedalboard due to its extra flat 6.3 mm angle jack plugs with gold-plated tip. The ultra-flexible, flat cable with fine-stranded 0.16 mm² inner conductor and very low capacitance, ensures detailed, colouration-free signal transmission over the entire frequency range. Mercilessly save space on the permanently installed board!
