ZENIT® W600i

ZENIT® W600i

IP67 Outdoor LED Wash Light for permanent installation

Item no.: CLZW600I

Guarantee: 60 months

EAN: 4049521577512

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:ZENIT® Series

Versions:

Item highlights:

  • 40 x 15 W RGBW LEDs with 21,000 lm luminous flux for intensive homogeneous color mixing
  • Configuration only possible via RDM or with the ZENIT® REMOTE DISPLAY CONTROLLER (CLZIEXDISP) - available separately
  • IP67 classification for continuous use outdoors
  • Black C5-M certified coating
  • Various symmetric and asymmetric filter frames available as accessories
  • High-resolution color mixing and dimming using 16-bit technology
  • 18° beam angle and 35° field angle without diffuser
  • Control via DMX, RDM (via DMX) and automated programs
  • Temperature-controlled fans for reliable, low-noise operation

Features

RGB additive colour system plus white LEDs
Additional white LEDs create more contrast and clearer colour boundaries. What is more, they improve the creation of white and pastel colours.

Specifications

LED data
40 x 15 W RGBW LED
Beam/Field angle
Beam: 18° / Field: 35°
LED PWM frequency
800 Hz, 1,200 Hz, 2,000 Hz, 3,600 Hz, 12 kHz, 25 kHz
Number of DMX control modes
7
Stand alone operating modes
Timer function
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Rated power
565 W
Cabinet material
Aluminum continuous casting
Colour
Black
Cooling system
Heat pipes, Temperature controlled fan cooling
Protection class
IP67
Ambient temperature
-15 - 45 °C
Width
463 mm
Height
291 mm
Depth
161 mm
Weight
15.2 kg

Description

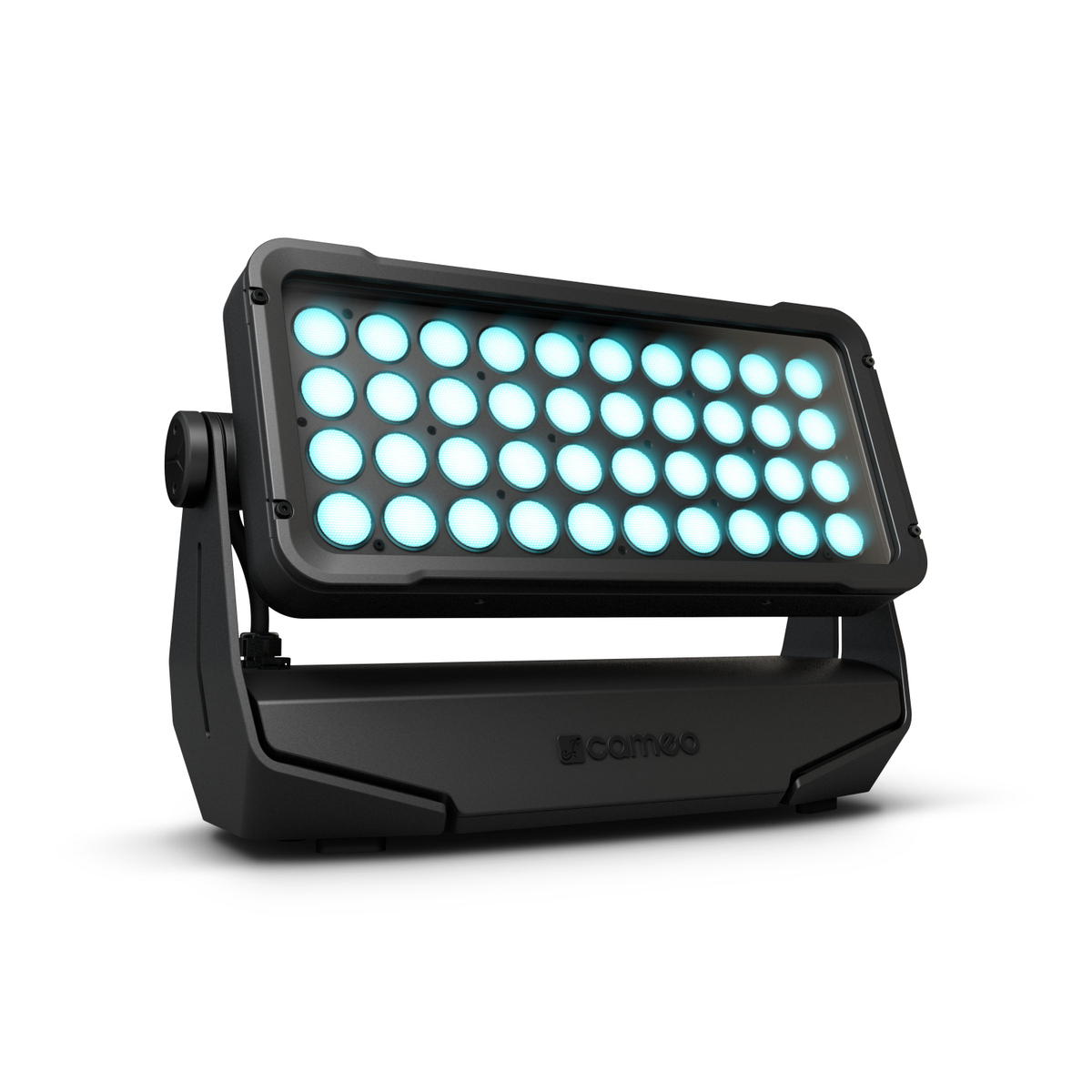

ZENIT® W600i

Whether onto modern buildings, rough facades or impressive monuments, the ZENIT® W600i projects up to 21,000 lm of light from a total of 40 15-watt RGBW LEDs powerfully and precisely onto every shape. Advanced 16-bit technology for high-resolution color mixing and dimming enables lighting designers to produce intense, homogeneous color and white surfaces that immerse even the largest buildings in perfect light. Combined with integrated color temperature correction (CTC) and LED color calibration, the selectable dimmer curves along with the optional simulation of the dimming behaviour of a halogen lamp, the ZENIT® W600i offers an extremely versatile tool for professional architectural lighting.

Compared to the ZENIT® W600 (IP65), the W600i with its IP67 protection rating is optimally protected against temporary submersion under water and thus perfectly prepared for maritime applications. Its heavy duty build quality and black C5-M coating provides outstanding resistance against corrosion and other environmental influences.

The ZENIT® W600i offers maximum flexibility by making a wide range of accessories available. These include a number of symmetric and asymmetric filter frames to produce the desired beam angle. Glare from a direct light source is avoided by using either full or partial glare protection. With a special mounting plate, the spotlight can be permanently mounted to withstand strong forces.

For live stages, outdoor events and in the TV sector, the ZENIT® W600 has already proven its quality - with the ZENIT® W600i, architects, planners, light designers and rental service providers who increasingly work in the field of architectural lighting now also benefit from the enormous light output, color quality, and reliability of this outdoor wash light.
