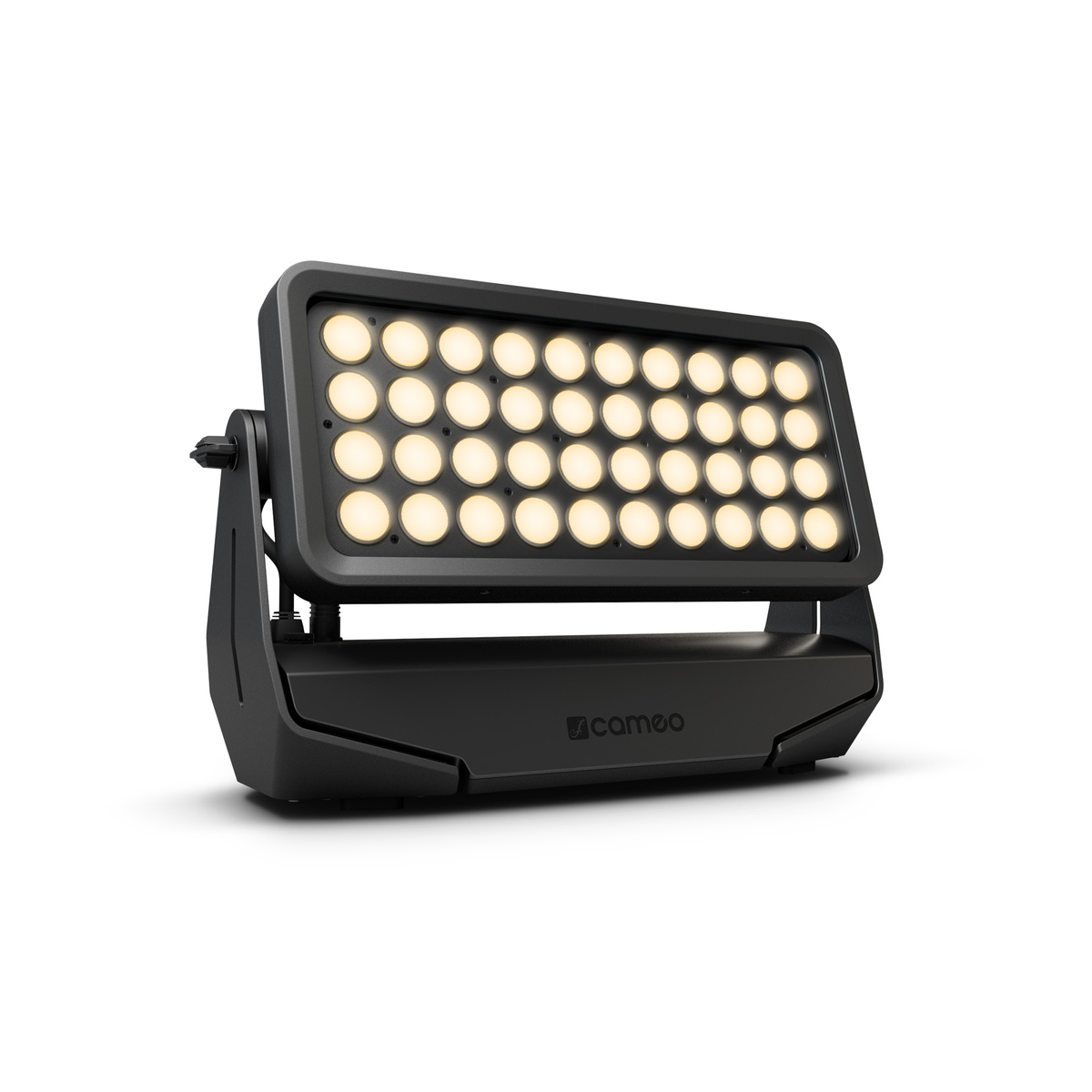

ZENIT® W600 TW

ZENIT® W600 TW

Outdoor LED Wash Light Tunable White Version

Item no.: CLZW600TW

Guarantee: 24 months

EAN: 4049521707698

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:ZENIT® Series

Versions:

Item highlights:

  • 40 x 12 W CW/WW LEDs with 31,000 lm luminous flux for intensive "Tunable White" mix
  • 18° beam angle and 35° field angle without diffusion lens
  • SnapMag® filter frames with 25°, 45°, 100°, 60° x 10°, 90° x 10° beam angles available separately
  • Control via DMX, RDM (via DMX) and automated programs
  • IP65 rated for outdoor use
  • Integrated 2.4 GHz W-DMX™ transceiver
  • Wireless master-and-slave operation
  • Temperature-controlled fans for optimised, low-noise operation
  • Colour temperature from 2,600 K to 6,500 K

Features

This product is ETL certified.

Specifications

LED data
40 x 12 W Tunable white LED
Luminous flux
31,000 lm
Beam/Field angle
Beam: 18° / Field: 35°
LED PWM frequency
650 Hz, 1,530 Hz, 3,600 Hz, 12 kHz, 25 kHz
Correlated colour temperature (CCT)
2,600 - 6,500 K
Colour rendering index (CRI)
> 93
Strobe
8,000 - 25,000 Hz
Controller protocols
DMX512, RDM
Number of DMX control modes
6
Stand alone operating modes
Timer function
Data in connector
XLR 5-pole male
Data out connector
XLR 5-pole female
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Rated power
480 W
Cabinet material
Aluminum continuous casting
Colour
Black
Cooling system
Fan cooling
Protection class
IP65
Ambient temperature
-15 - 40 °C
Width
463 mm
Height
291 mm
Depth
161 mm
Weight
13 kg
Required Accessories
2 x Omega-Montagebügel, Netzkabel

Description

ZENIT® W600 TW

Puts every space in the right light - the Tunable White version of the ZENIT® W600 family projects its up to 31,000 lm light from a total of 40 x 12 watt cool and warm white LEDs powerfully and precisely onto every area, whether in the exhibition hall or at an exhibition. Thanks to 16-bit technology for high-resolution colour mixing and dimming, lighting designers can create powerful white surfaces that range from 2,600 K to 6,500 K in colour temperature. The selectable dimming curves including the optional simulation of the dimming behaviour of a halogen lamp make the ZENIT® W600 TW a versatile tool for atmospheric architectural and stand lighting.

For maximum flexibility, numerous accessories are available for the ZENIT® W600 TW. A variety of symmetrical and asymmetrical SnapMag® filter frames can be selected to achieve the desired beam angle. Filter frames with 25°, 45°, 100° or elliptical 60° x 10° and 90° x 10° beam angles are available and, thanks to the patented SnapMag® technology, mounting is done completely without tools.

The ZENIT® W600 has already proven its quality on live stages, outdoor events and in the TV sector - with the ZENIT® W600 TW, architects, planners, lighting designers and rental service providers who increasingly work in the field of architectural and trade fair lighting now also benefit from the enormous luminous efficacy, quality and reliability of the Tunable White Washlight.
